Full digital encryption WiFi conference discussion unit

CR-WiFi6302/04K

The CR-WiFi6302/04K wireless conference unit adopts special design to ensure the machine is stable and durable. It is easy to integrate with any meeting room.

The built-in antenna design; each unit is built-in with high performance battery, providing continuous speech as long as 10 hours; 12 hours of standby time; all functions of conference unit can be completed with the unit panel buttons; WiFi encryption transmission technique ensures that the speech is free from unauthorized interception.

INQUIRY

Features

Specifications

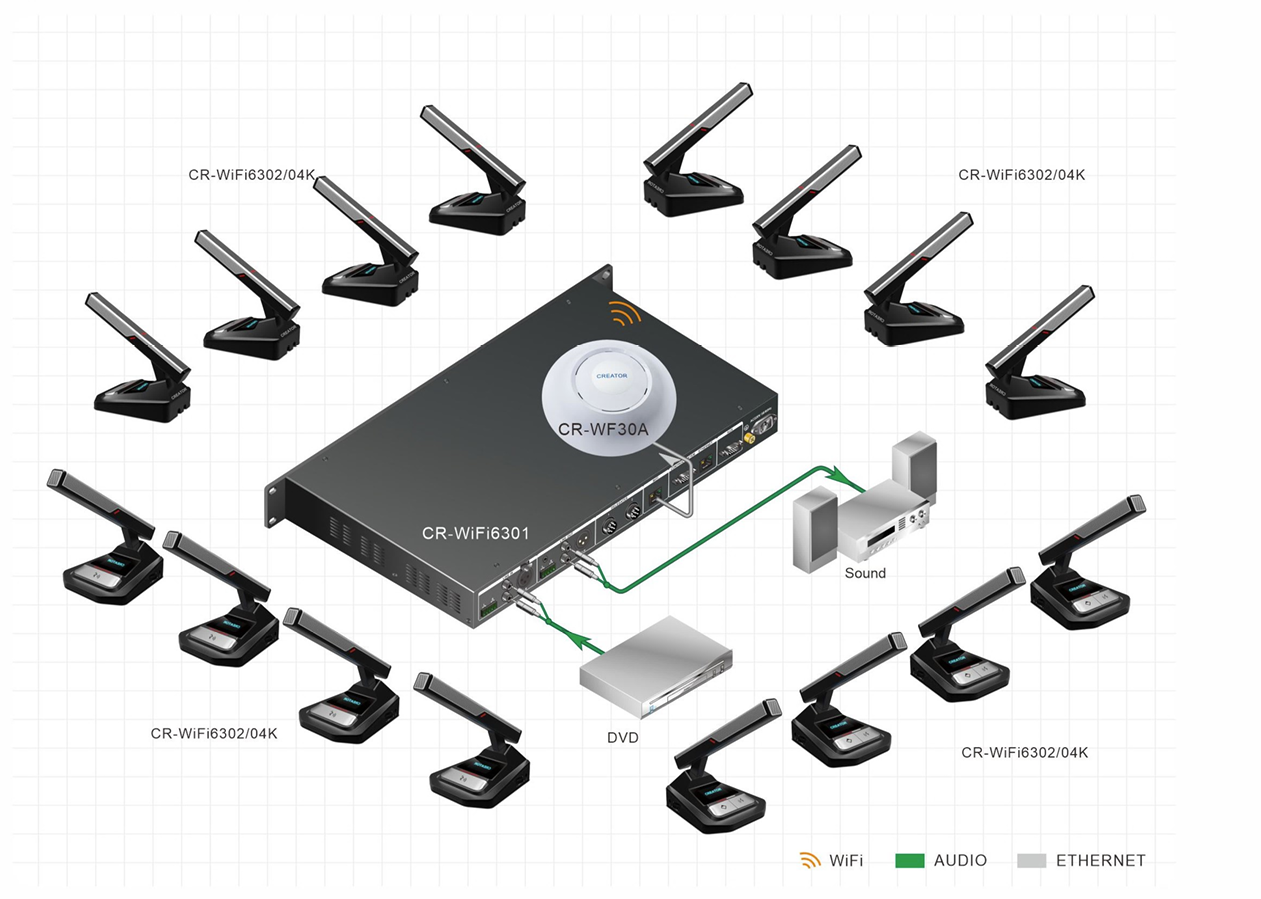

Diagram

Drawing

Downloads

The CREATOR CR-WiFi6302/04K is a full digital encrypted WiFi conference discussion unit designed for professional meeting environments that require secure wireless communication, clear audio transmission, and convenient conference management. With a built-in antenna and a removable high-capacity battery, this wireless conference unit offers flexible deployment without the need for a wired connection to each conference seat.

Featuring 48 kHz uncompressed digital audio transmission, a frequency response of 30 Hz–20 kHz, and a minimum audio transmission delay of less than 5 ms, the CR-WiFi6302/04K supports clear and responsive conference discussions. Its 2-inch full-color LCD touchscreen displays operating information, including WiFi signal strength and battery status, while Chinese and English language options simplify operation.

The unit supports multiple conference modes, chairman priority control, attendance sign-in, voting, and rating functions. When integrated with compatible CREATOR conference controllers and camera tracking equipment, it can also support mobile camera tracking. These capabilities make the CR-WiFi6302/04K a practical choice for building a full digital wireless conference system in corporate meeting rooms, government facilities, conference halls, and other professional venues.

Features

Encrypted WiFi Transmission: Uses digital wireless encryption technology to help protect conference speech against unauthorized interception and malicious interference.

Uncompressed Digital Audio: Supports 48 kHz audio sampling and a 30 Hz–20 kHz frequency response for clear speech transmission.

Low Audio Latency: Features a minimum microphone-to-speaker output delay of less than 5 ms for responsive conference communication.

Long Battery Operating Time: The removable 7.2 V, 3500 mAh battery supports up to 10 hours of continuous speech and 12 hours of static standby under the stated specifications.

2-Inch Color Touchscreen: The full-color LCD touchscreen supports Chinese and English displays and shows information such as wireless signal strength and battery status.

Multiple Conference Modes: Supports FIFO, APPLY, and NORMAL modes to accommodate different meeting procedures and microphone management requirements.

Chairman Priority Control: Supports priority control for the chairman unit, helping manage speaking order during meetings.

Voting and Attendance Functions: Supports sign-in, voting, and rating to facilitate participant management and meeting decision-making.

Camera Auto-Tracking Support: Works with compatible CREATOR HD camera tracking controllers and HD infrared automatic cameras to support mobile camera tracking.

Customizable Display and Speaking Time: Supports clock or LOGO display, LOGO replacement, speaking timers, countdowns, or operation without timing.

PC Software Control: Supports microphone control through compatible PC software for centralized conference management.

Configurable Wireless Settings: Supports SSID settings, RFID settings, and factory reset functions for system configuration and maintenance.

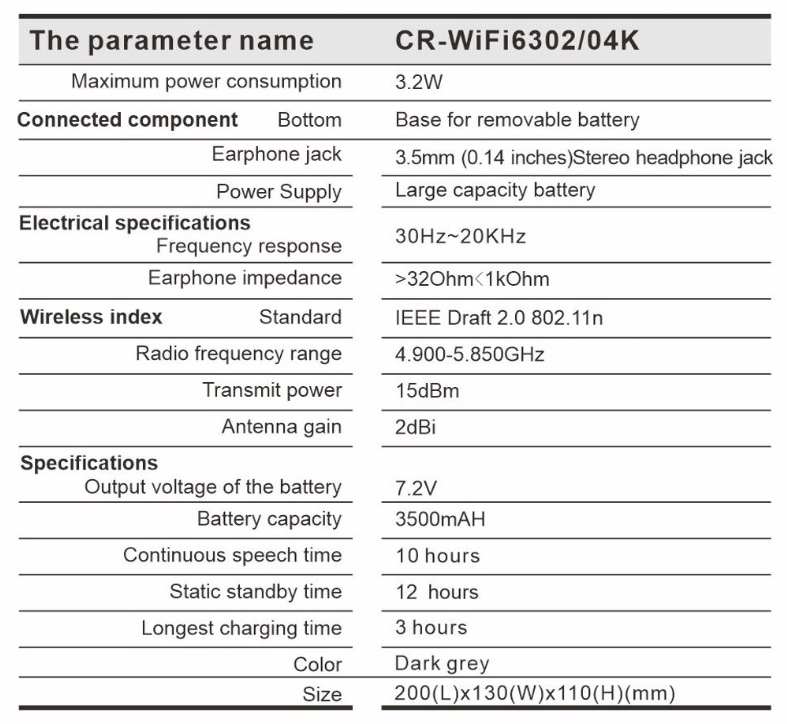

Parameter	CR-WiFi6302/04K
Maximum Power Consumption	3.2 W
Connected Components
Bottom	Base for Removable Battery
Earphone Jack	3.5 mm (0.14 inches) Stereo Headphone Jack
Power Supply	Large-Capacity Battery
Electrical Specifications
Frequency Response	30 Hz–20 kHz
Earphone Impedance	>32 Ω and <1 kΩ
Wireless Index
Standard	IEEE Draft 2.0 802.11n
Radio Frequency Range	4.900–5.850 GHz
Transmit Power	15 dBm
Antenna Gain	2 dBi
Specifications
Battery Output Voltage	7.2 V
Battery Capacity	3500 mAh
Continuous Speech Time	10 Hours
Static Standby Time	12 Hours
Maximum Charging Time	3 Hours
Color	Dark Grey
Dimensions (L × W × H)	200 × 130 × 110 mm

Applications

The CR-WiFi6302/04K encrypted wireless conference unit is suitable for professional meeting spaces that require flexible wireless microphone deployment, secure communication, and integrated conference management.

Corporate Boardrooms and Meeting Rooms

Deploy wireless conference discussion units at individual seating positions to support organized discussions, chairman priority control, and attendance management.

Government and Institutional Meeting Rooms

Integrate encrypted WiFi conference equipment into meeting environments where communication confidentiality and controlled speaking procedures are important.

Conference Halls and Training Centers

Use multiple compatible conference units to support participant discussions, voting, and rating during formal meetings, training sessions, and group presentations.

Command and Control Rooms

Integrate the discussion unit with compatible conference controllers and AV equipment to support coordinated communication and camera auto-tracking applications.

Multilingual and International Meetings

Combine the wireless discussion unit with compatible interpretation and conference system equipment to support meeting workflows involving participants from different language backgrounds.

FAQ

1. What is the CR-WiFi6302/04K conference discussion unit?

The CR-WiFi6302/04K is a full digital encrypted WiFi conference discussion unit designed for professional wireless conference systems. It supports digital audio transmission, touchscreen operation, chairman priority control, attendance sign-in, voting, and rating functions.

2. How long does the battery last?

The unit is equipped with a 7.2 V, 3500 mAh battery. According to the stated specifications, it supports up to 10 hours of continuous speech and 12 hours of static standby. The maximum charging time is 3 hours. Actual operating time may vary with usage and system conditions.

3. Does the CR-WiFi6302/04K support encrypted wireless communication?

Yes. The unit uses WiFi encryption transmission technology and digital protection to help safeguard conference speech against unauthorized interception and interference. Overall security also depends on the configuration of the complete wireless conference system.

4. What conference management functions does it support?

The unit supports FIFO, APPLY, and NORMAL conference modes, as well as attendance sign-in, voting, and rating. It also supports chairman priority control, display customization, and speaking timers.

5. Can the CR-WiFi6302/04K work with an automatic camera tracking system?

Yes. When connected to compatible CREATOR conference controllers, HD camera tracking controllers, and HD infrared automatic cameras, the unit can support mobile camera tracking. The required equipment and configuration should be confirmed for each project.

6. What information can be displayed on the touchscreen?

The 2-inch full-color LCD touchscreen supports Chinese and English displays. It can show information such as WiFi signal strength and battery status, along with clock or LOGO display and speaking-time functions.
