CR-WiFi6302/04B-N
Full digital WiFi conference encryption discussion unit
CR-WiFi6302/04B-N
The CR-WiFi6302/4B-N wireless conference unit adopts special design to ensure the machine is stable and durable. It is easy to integrate with any meeting room.
The built-in antenna design; each unit is equipped with high performance removable battery, providing continuous speech as long as 14 hours; 16 hours of standby time; all functions of conference unit can be completed with the unit panel buttons; WiFi encryption transmission technique ensures that the speech is free from unauthorized interception.
INQUIRY
The built-in antenna design; each unit is equipped with high performance removable battery, providing continuous speech as long as 14 hours; 16 hours of standby time; all functions of conference unit can be completed with the unit panel buttons; WiFi encryption transmission technique ensures that the speech is free from unauthorized interception.
Features
Specifications

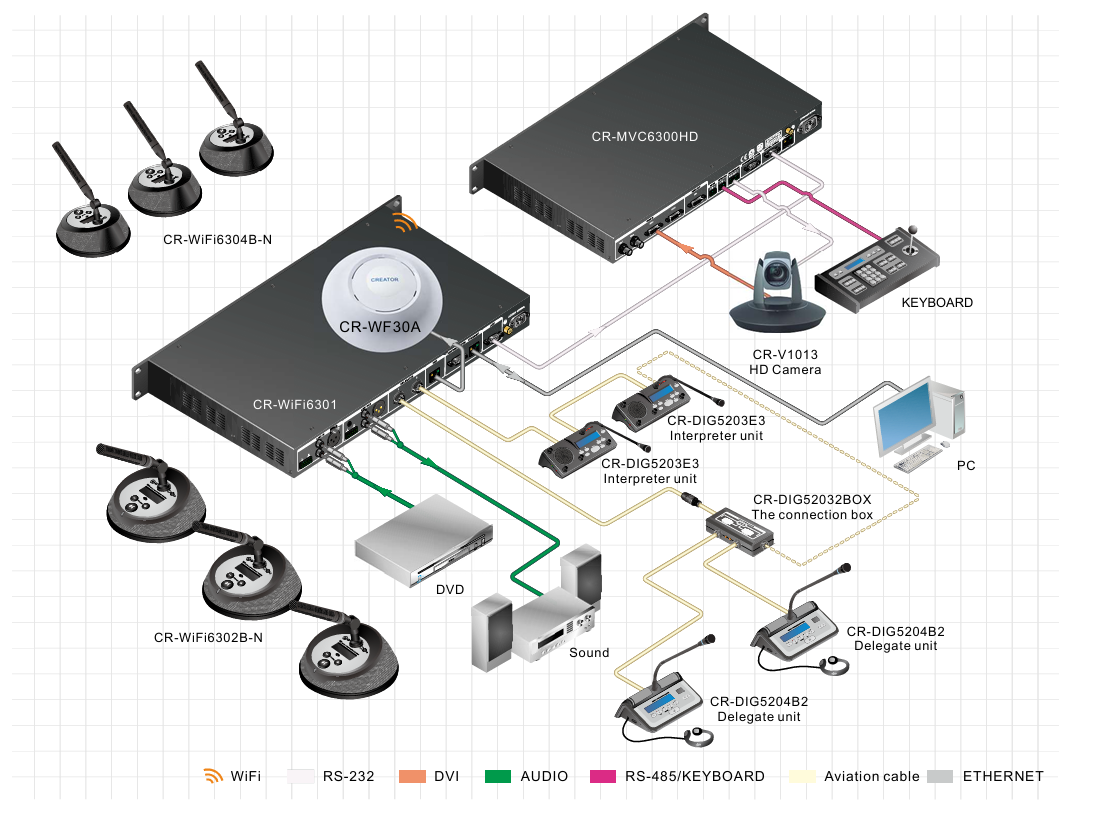

Diagram

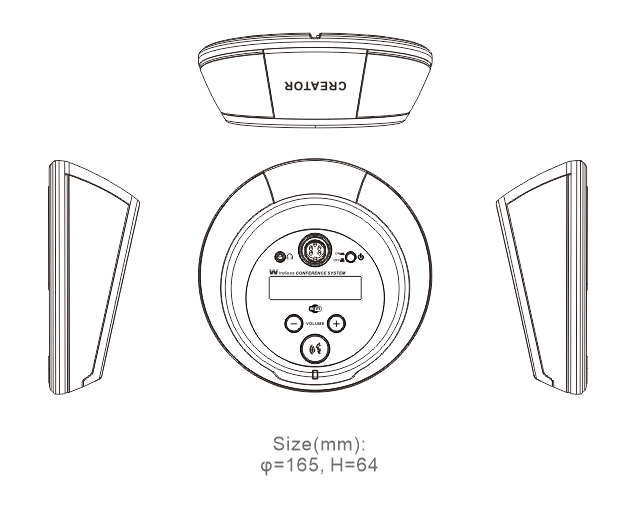

Drawing
Downloads
● WiFi transmission technology and strictly digital protection ensure the privacy of the meeting, to avoid malicious eavesdropping and jamming.
● The non compressed audio transmission technology, the sampling rate of 48K, 20HZ-20KHZ bandwidth perfect sound.
● Using low delay technique, the output minimum delay from microphone to speaker is less than 5ms.
● Support for PC software microphone control.
● Equipped with rechargeable lithium battery, the battery support 14 hours of continuous speech or 16 hour static standby.
● Built in magnetic loudspeaker.
● Work with the CREATOR HD camera tracking controller and HD infrared automatic camera to support mobile camera tracking.
● The chairman has priority control.
● Support a variety of conference modes like FIFO, APPLY, NORMAL.
● Support the sign function.
● Battery removable.
| The parameter name | CR-WiFi6302/04B-N |
|---|---|
| Maximum power consumption | 4W |
| Connected component Bottom | Basement for pluggable microphone |
| Earphone jack | 3.5mm (0.14 inches)Stereo headphone jack |
| Power Supply | Large capacity removable battery |
| Electrical specifications Frequency response | 20Hz~20KHz |
| Earphone impedance | >32Ohm<1kOhm |
| Output consumption of loudspeaker | 2X1.5W／8Ohm |
| Wireless index Standard | IEEE Draft 2.0 802.11n |
| Radio frequency range | 4.900-5.850GHz |
| Transmit power | 15dBm |
| Antenna gain | 2dBi |
| Specifications Output voltage of the battery | 7.2V |
| Battery capacity | 3200mAH |
| Continuous speech time | 14 hours |
| Static standby time | 16 hours |
| Longest charging time | 3 hours |
| Color | Black and silvery |
