Full digital encryption WiFi conference controller

CR-WiFi6301

CR-WiFi6301 is the new generation encryption camera auto-tracking conference controller of CREATOR, which support both wireless and wired conference.

INQUIRY

Features

Specifications

Diagram

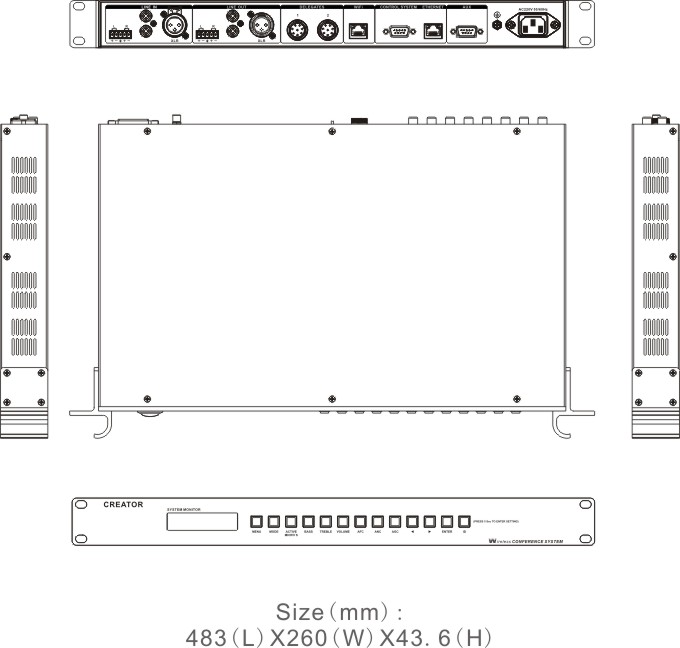

Drawing

Downloads

The CREATOR CR-WiFi6301 is a full digital encrypted WiFi conference controller designed for professional conference environments requiring secure communication, flexible system integration, and centralized meeting management. As a core component of the full digital wireless conference system, it supports both wired and wireless conference units, allowing integrators to build a wired and wireless conference system according to the needs of different venues.

Equipped with WPA/WPA2 wireless security, 48 kHz uncompressed digital audio transmission, and integrated digital signal processing, the CR-WiFi6301 helps maintain clear conference audio while protecting meeting communications. Its built-in CPU integrates discussion, attendance, voting, and simultaneous interpretation functions, while PC software management and TCP/IP control simplify system operation and maintenance.

The controller supports up to 4,000 conference units and works with compatible CREATOR access points, conference units, and camera tracking equipment. It is suitable for professional AV projects that require centralized control, flexible audio routing, and camera auto-tracking conference system integration.

Features of CR-WiFi6301

WPA/WPA2 Wireless Security: Supports WPA/WPA2 wireless security technology to help protect confidential meetings against unauthorized listening and malicious interference.

Wired and Wireless Integration: Supports DIG wired and WiFi conference units in the same system through an access point, providing flexible deployment options for different meeting environments.

High-Quality Digital Audio: Uses uncompressed audio transmission with a 48 kHz sampling rate and a 20 Hz–20 kHz frequency response for clear speech reproduction.

Large System Capacity: Supports up to 4,000 conference units, with up to 8 microphones active simultaneously. The wireless system supports a maximum of 6 microphones, and wired simultaneous interpretation supports 31+1 channels.

Integrated Conference Management: The built-in high-performance CPU integrates discussion, attendance, voting, electronic nameplate, and simultaneous interpretation functions.

Digital Acoustic Feedback Suppression: The built-in DAFS Digital Acoustic Feedback System uses 32-bit floating-point DSP processing to provide two-channel acoustic feedback suppression and noise reduction.

Automatic Camera Tracking: Supports VISCA, PELCO-D, SAMSUNG, and CREATOR camera control protocols. With compatible CREATOR matrix or control equipment, an HD camera tracking controller, and an HD automatic infrared camera, the system can support wired preset tracking and wireless mobile tracking.

Flexible Audio Routing: Provides RCA, Phoenix terminal, and XLR audio interfaces, supports balanced and unbalanced audio, and offers four speaker-zone outputs for flexible audio distribution.

PC Software and TCP/IP Control: Enables centralized conference unit management and intelligent fault analysis, helping operators identify unit types, quantities, distribution, and potential faults.

Network Transmission and Connection: Supports Cat5e cabling, 100 Mbps network transmission for digital audio and control signals, and ring-connected conference unit configuration.

Standards Compatibility: Compatible with EC 60914 and GBT15381-94.

The parameter name	CR-WiFi6301
Power supply	110V/220VAC
Frequency response	20Hz-20KHz
Signal to noise ratio	>80dB
Channel crosstalk	>80dB
Total harmonic distortion	<0.05%
Maximum power consumption	150W
Static power consumption	12W
Color	Dark grey

Applications

The CR-WiFi6301 wireless conference controller is designed for professional AV installations that require secure meeting communication, integrated audio management, and flexible conference unit deployment.

Corporate Boardrooms and Meeting Rooms: Manage wired and wireless microphones, voting, attendance, and discussion functions through a centralized controller.

Government and Institutional Conference Rooms: Support encrypted conference communication and centralized system management for meetings where confidentiality is important.

Conference Halls and Training Centers: Integrate conference microphones, audio routing, and wired simultaneous interpretation for larger meetings and multilingual events.

Command and Control Rooms: Work with compatible AV control and camera tracking equipment to support integrated communication and video monitoring environments.

Hybrid Conference Environments: Combine wired and wireless conference units and connect compatible remote video conferencing equipment through the controller's audio interfaces.

International Meetings and Interpretation Venues: Support up to 31+1 channels of wired simultaneous interpretation for multilingual conference applications.

FAQ

1. Does the CR-WiFi6301 support both wired and wireless conference units?

Yes. The CR-WiFi6301 supports both DIG wired and WiFi conference units in the same system when connected through a compatible access point. This allows system integrators to combine wired and wireless devices according to venue requirements.

2. How many conference units and microphones can the CR-WiFi6301 support?

The controller supports up to 4,000 conference units. Up to 8 microphones can be active simultaneously, while the wireless system supports a maximum of 6 microphones. The final system configuration should be confirmed according to the connected equipment and project requirements.

3. Does the controller support automatic camera tracking?

Yes. The CR-WiFi6301 supports VISCA, PELCO-D, SAMSUNG, and CREATOR camera control protocols. Automatic camera tracking requires compatible camera tracking equipment and system configuration. Wired preset tracking and wireless mobile tracking are supported with the specified compatible components.

4. Does the CR-WiFi6301 support simultaneous interpretation?

Yes. The controller supports 31+1 channels of wired simultaneous interpretation, making it suitable for international conferences and multilingual meeting environments.

5. What audio interfaces are available?

The controller provides RCA, Phoenix terminal, and XLR audio interfaces and supports balanced and unbalanced audio signals. It can accommodate four audio mixer inputs, or three mixer inputs plus one remote video conference input. Four speaker-zone outputs are available for flexible audio distribution.

6. Can the CR-WiFi6301 be managed through PC software?

Yes. The controller supports PC software management and TCP/IP control. The software can centrally manage conference units and perform intelligent fault analysis to help identify device types, quantities, distribution, and faults.
