HDMI UHD Seamless Multiviewer Video Switcher Receiver
CR-IMAX51H70
The CR-IMAX51H70 5x1 seamless presentation switch features 3 HDMI inputs, 2 USB-C inputs (DP Alt mode, USB 2.0, 100M Ethernet and 60W charging), 1 HDMI output and 1 HDBT mirrored output.
HDBT supports standard PoE power supply, and can extend uncompressed signal up to a distance of 230ft/70m (4K@30Hz 4:4:4) or 131ft/40m (4K@60Hz 4:4:4) via a single CAT6A (F/FTP) cable. This 5x1 seamless presentation switch output supports single full screen or various multiview display modes (Single/PIP/PBP/Triple/Quad). This product supports USB 2.0 local KVM switching and local Hub/HDBT USB pass-through function (from TX to RX). It also supports bi-directional RS-232 and IR control signal pass-through function.
This presentation switch is featured with 1 analog audio input, 1 analog audio output, and Dante 2x2 audio input and output. It built-in 3x3 audio matrix with independent audio EQ/ volume/delay adjustment.
This switcher is a suitable solution for presentation purpose at classroom and conference room.
Features

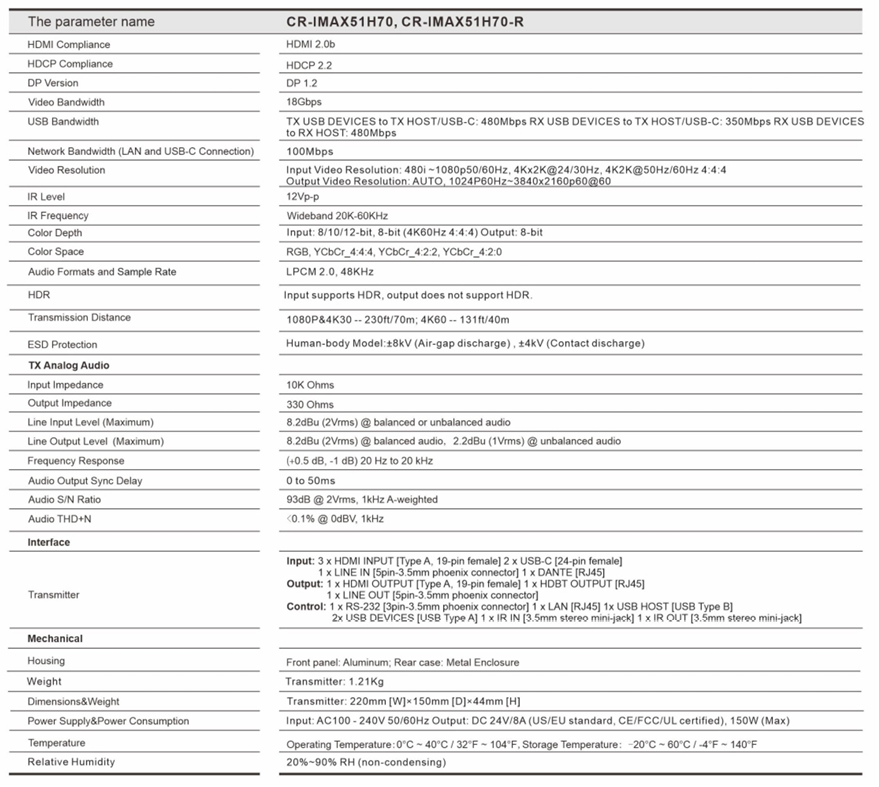

Specifications

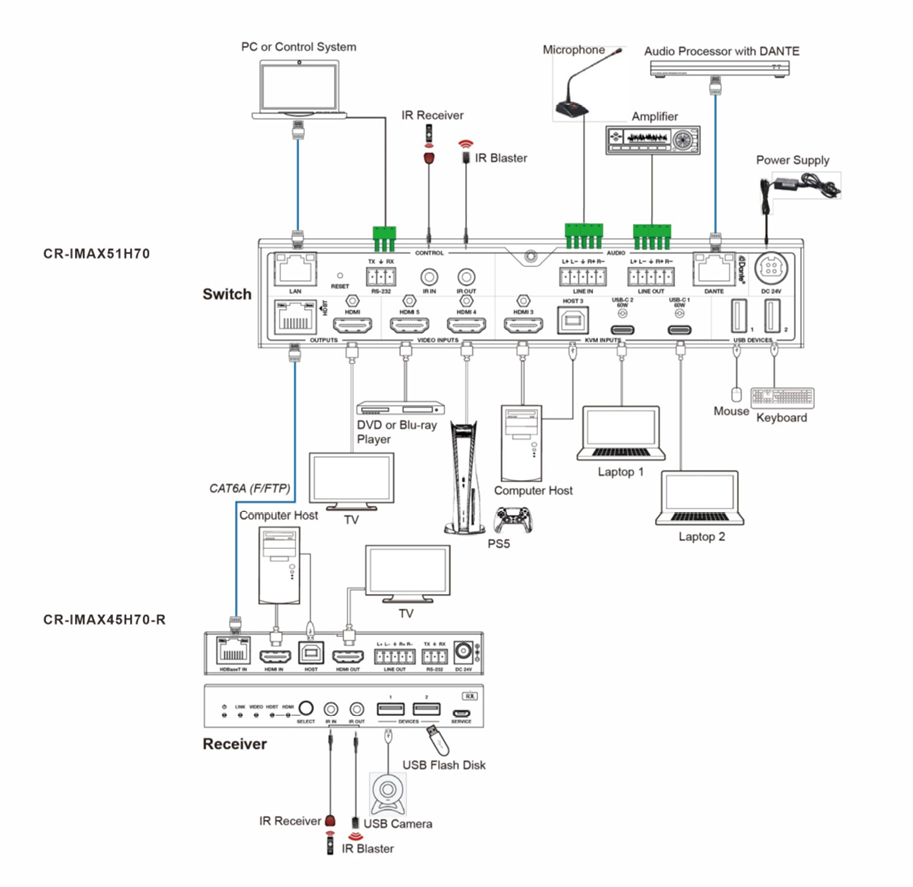

Diagram
Drawing
Downloads
● HDMI 2.0b, HDCP 2.2 and DP 1.2 compliant
● Support 18Gbps video bandwidth
● Support video resolution up to 4K@60Hz 4:4:4
● Uncompressed 4K60 over HDBT 3.0 up to 132ft/40m via single CAT6A (F/FTP) cable
● Uncompressed 1080P&4K30 over HDBT 3.0 up to 230ft/70m via single CAT6A (F/FTP) cable
● Up to 5 categories of multiview display modes: Single/PIP/PBP/Triple/Quad
● Multiple multiview display modes: Auto/Single/PIP/PBP/Triple/Quad/Custom
● Support 5x1 seamless switching (single screen) and fast switching (multiview) function
● Input: 2x USB-C, 3x HDMI, 1x Analog audio, 1x Dante 2ch
● Output: 1x HDMI and 1x HDBT mirrored, 1x Analog audio, 1x Dante 2ch
● HDMI and HDBaseT (PoE) outputs (Mirrored)
● Dante 2x2 audio input and output
● USB-C supports DisplayPort Alt mode for A/V, USB 2.0, 100M Ethernet and 60W charging
● Local USB 2.0 KVM switching and extending USB 2.0 over HDBT 3.0
● Signal input supports manual switching and automatic switching modes
● Support analog/Dante audio embedding, analog/Dante audio de-embedding output
● Dante 2x2 audio input and output
● CEC/RS-232 control external devices ON/OFF
● Advanced EDID management
● Support standard PoE power supply from TX to RX (TX_PSE, RX_PD)
● Flexible control via front panel buttons, IR remote, RS-232, TCP/IP or Web GUI
