HomeSolid Matrix Switchers
UHD seamless HDMI switcher
CR-HD0808SW
CR-HD0808SW is a perfect solution for video transmission from 8 HDMI sources to 8 HDTV displays. Video resolution is up to 4K@60Hz 4:4:4. Each output supports resolution downscaling individually. It features video wall function and built-in WEB server. It also has 8 routes L/R audio output channels to output balanced audio. And seamless switching ensures a smooth picture transition without frame loss.
This matrix can be controlled via front panel buttons, IR remote, RS-232 and Web GUI.
INQUIRY
This matrix can be controlled via front panel buttons, IR remote, RS-232 and Web GUI.
Features
Specifications

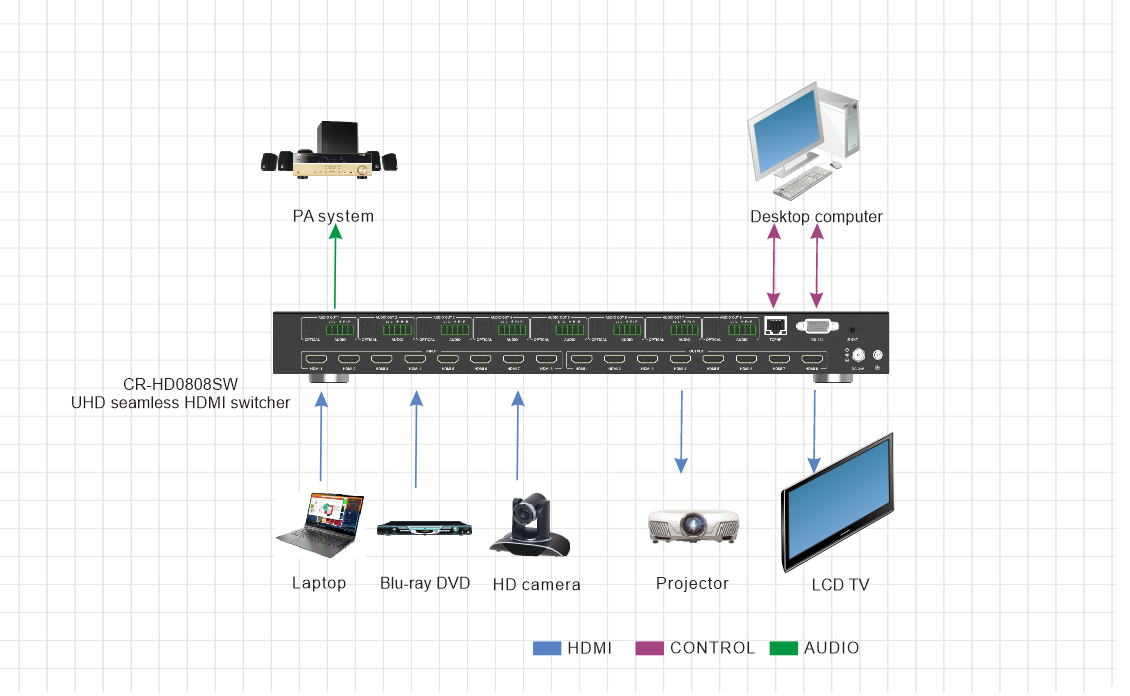

Diagram
Drawing
Downloads
● HDMI 2.0 and HDCP 2.2 compliant
● Video resolution is up to 4K@60Hz 4:4:4
● Support 18Gbps video bandwidth
● Support seamless switching
● Support 8 route L/R balanced audio output
● Each output supports image rotation (0°/180°), horizontal mirror and vertical mirror
● lank screen, blue screen and LOS are optional when no signal outputs
● HDMI audio format: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio
● Support CEC control, and multiple video resolution output
● Support power-off memory and advanced EDID management
● Control via front panel buttons, IR remote, RS-232, and Web GUI
