HomeSolid Matrix Switchers
UHD HDMI switcher
CR-HD0404
This high performance HDMI Matrix Switcher can switch any of these four HDMI 2.0 sources to four HDMI 2.0 displays. Each input and output supports up to 4K60 4:4:4 resolution and HDCP 2.2. The outputs can be individually scaled for 1080p. De-embedded audio as analog L/R and coaxial is available for both outputs. The ARC function can return display device audio to coaxial port output only. Advanced EDID management is supported. With its 18Gbps bandwidth and the additional features with latest HDMI standards.
This switcher can be controlled from the front panel, RS-232, IR remote, or TCP/IP.
INQUIRY
This switcher can be controlled from the front panel, RS-232, IR remote, or TCP/IP.
Features

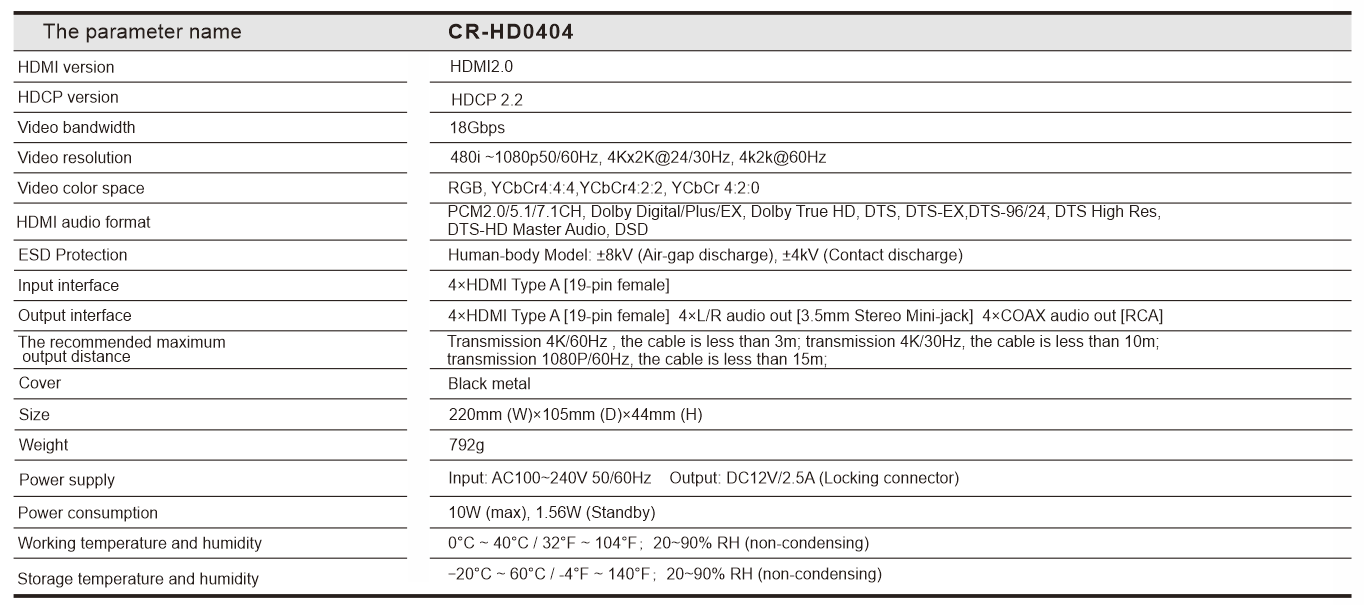

Specifications

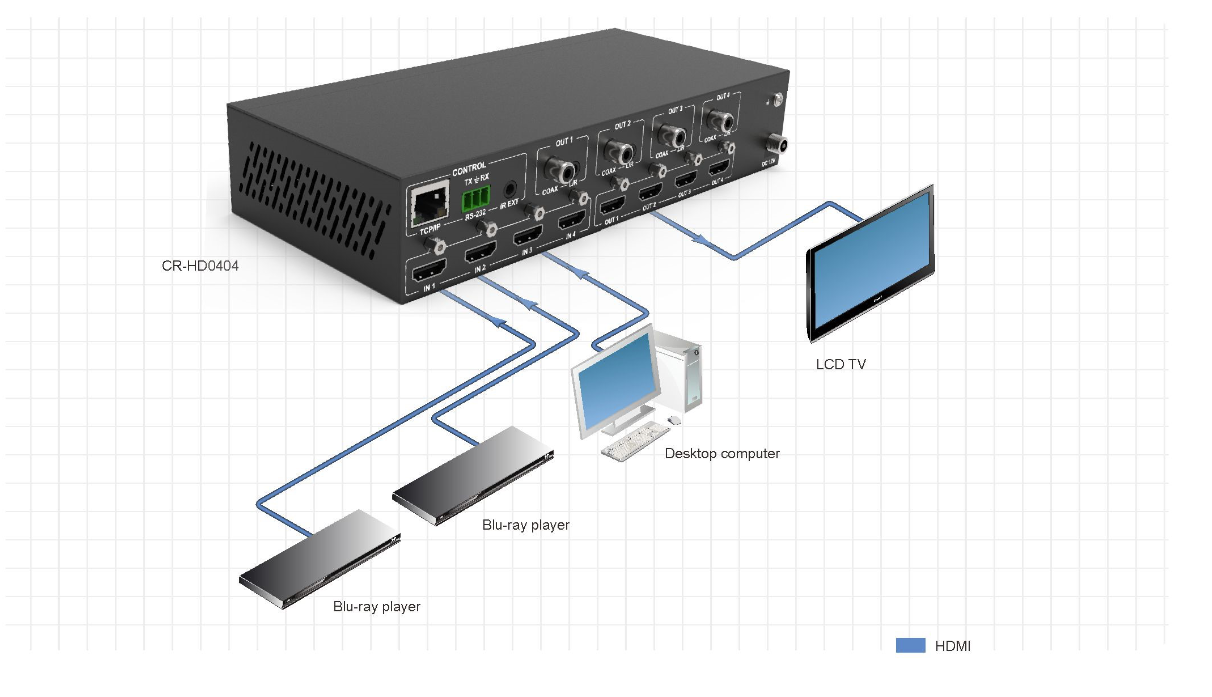

Diagram
Drawing
Downloads
● HDMI 2.0, HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant；
● Four 18G HDMI 2.0 video inputs support up to 4K60 4:4:4 resolution;
● Four 18G HDMI 2.0 video outputs support up to 4K60 4:4:4 resolution；
● Four outputs can be individually scaled for 4K→1080P；
● De-embedded audio to analog L/R and Coaxial ports output；
● ARC audio return to the coaxial ports output only；
● Built-in Web GUI for TCP/IP control；
● Advanced EDID management supported；
● Four methods of control: Front panel, RS-232, IR remote and TCP/IP;
● Compact design for easy and flexible installation.
