HDMI distributor
Pt-HDMI108DA
Pt-HDMI108DA is a 4K60 1×8 HDMI splitter, which can distribute 1 HDMI signal source to 8 HDMI display devices at the same time. Support 18Gbps video bandwidth, video resolution up to 4K@60Hz 4:4:4. With EDID control and management function, it supports two EDID modes (COPY/AUTO).
This equipment can be widely used in multimedia conference halls, TV teaching, large-screen display projects and other places.
INQUIRY
This equipment can be widely used in multimedia conference halls, TV teaching, large-screen display projects and other places.
Features

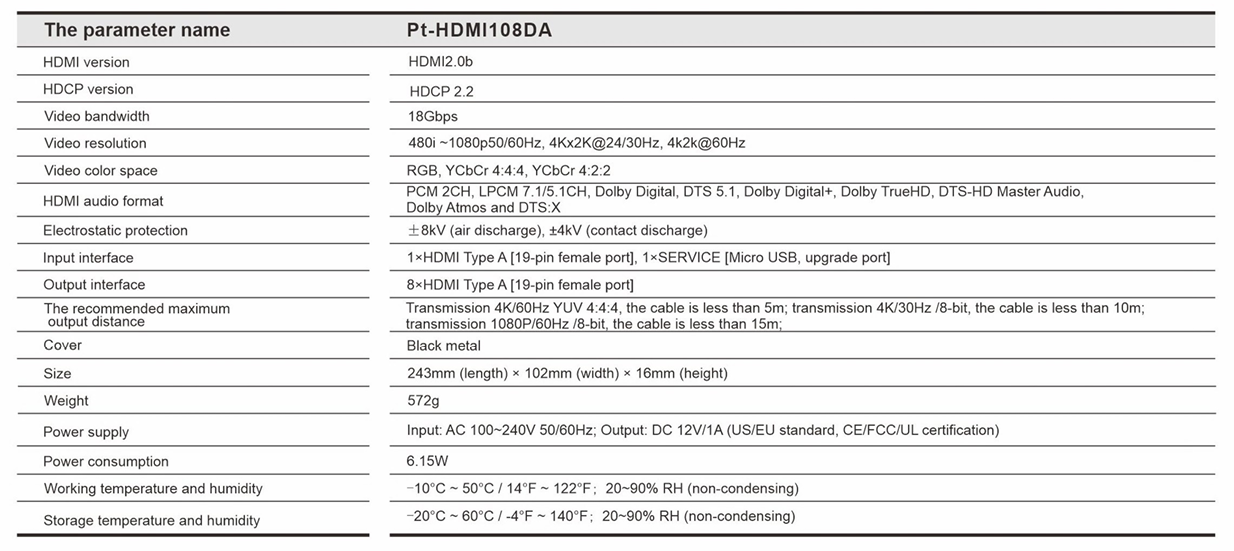

Specifications

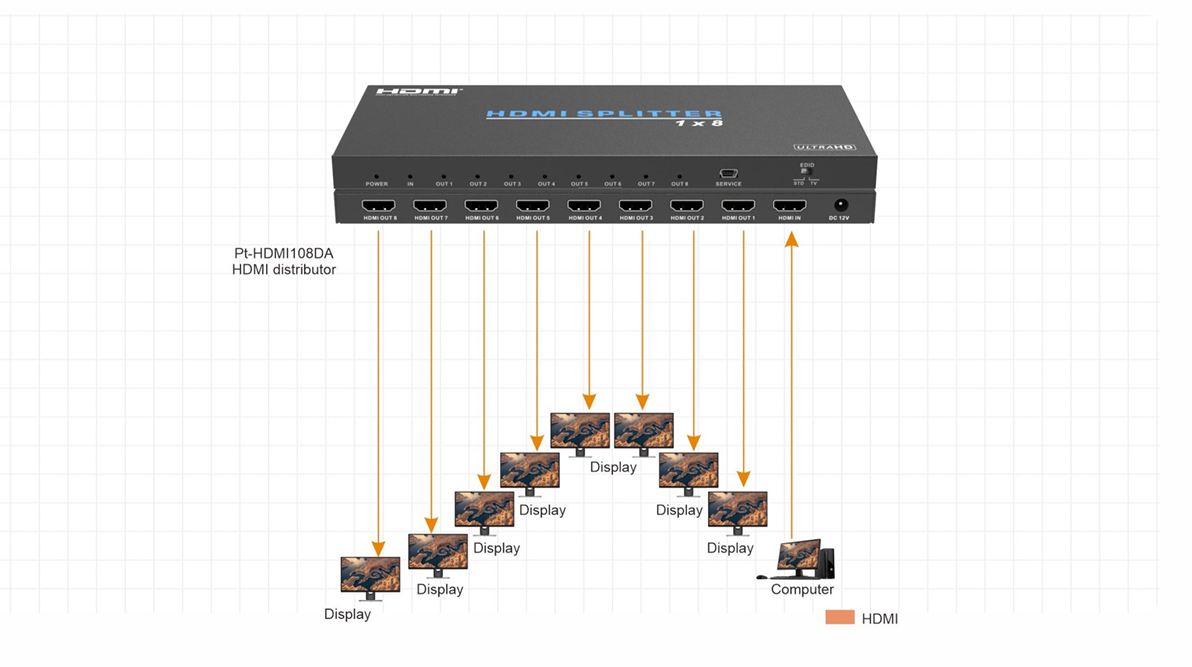

Diagram
Drawing
Downloads
● Comply with HDMI2.0b, HDCP2.2 specifications
● Support 18Gbps video bandwidth
● Support video resolution up to 4K@60Hz 4:4:4
● Support HDR
● With EDID control management function, support two EDID modes: COPY (copy) and AUTO (automatic)
● Support audio formats are PCM 2CH, LPCM 7.1/5.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos and DTS:X
