HDMI distributor
Pt-HDMI104DA
Pt-HDMI104DA is an advanced solution for splitting a single HDMI signal to 4 HDMI displays. It provides high performance audio and video output through HDMI cables up to 4K2K@60Hz 4:4:4 and is capable of receiving and transmitting up to 18Gbps of bandwidth with no data loss.(Supporting the latest features you can be assured of reliable and high quality HDMI distribution.)
This equipment can be widely used in multimedia conference halls, TV teaching, large-screen display projects and other places.
INQUIRY
This equipment can be widely used in multimedia conference halls, TV teaching, large-screen display projects and other places.
Features

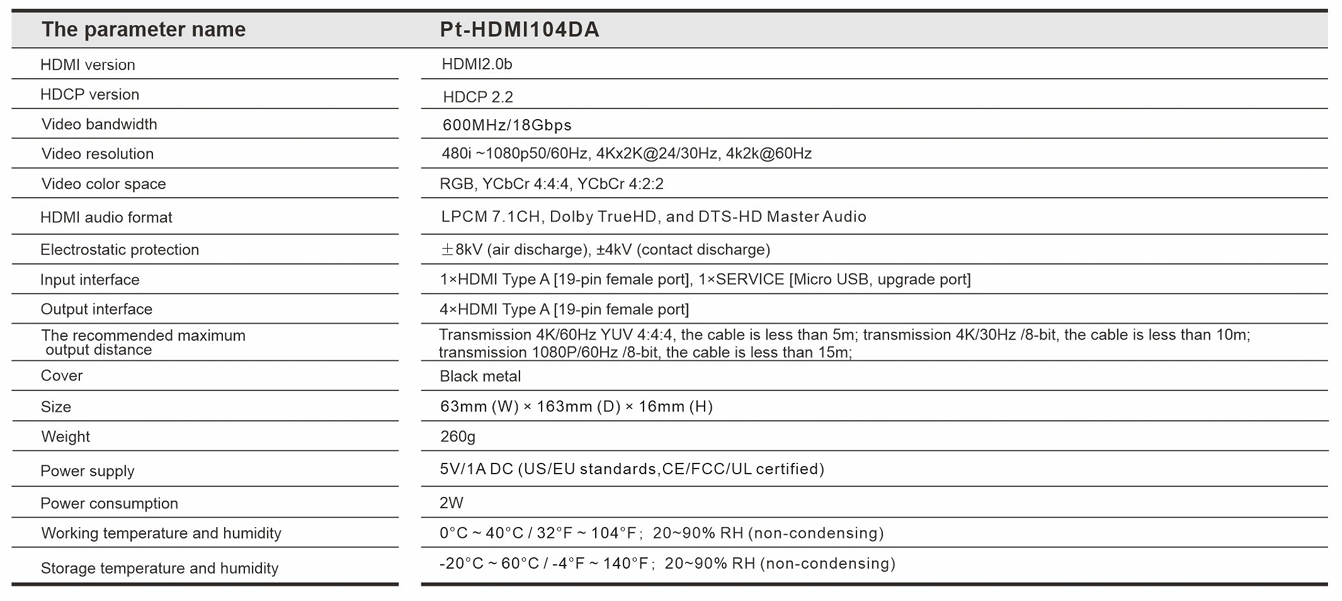

Specifications

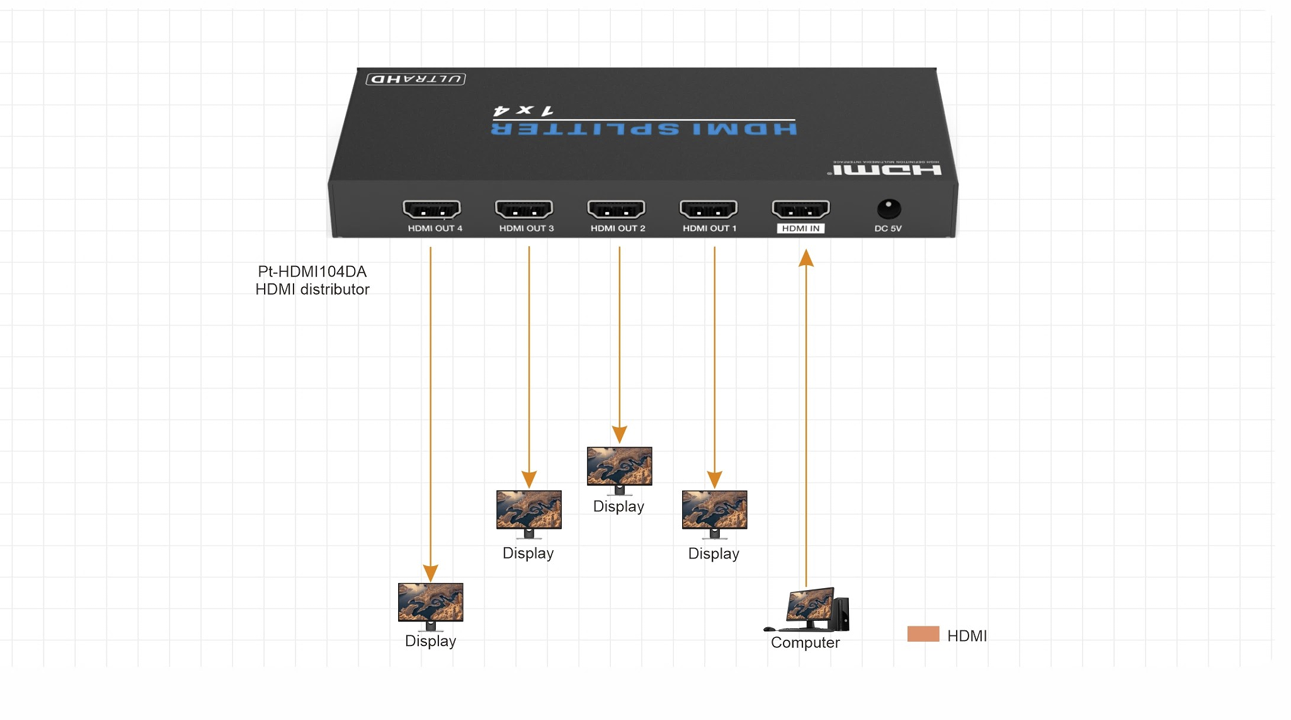

Diagram
Drawing
Downloads
● HDMI 2.0b, HDCP 2.2 compliant
● Supports video format up to 4K2K@60Hz with 8 bit RGB/YCBCR 4:4:4/YCBCR 4:2:2
● Support 3D frame sequential video format up to 1080p@60
● Supports 3D frame sequential video format up to 4K2K@30Hz
● Supports high resolution VESA mode video format up to QSXGA@60Hz
● Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
● Supports EDID mode, STD (1080p) mode, and TV (copy) mode
● Compact design for an easy and flexible installation
