Dual‑lens PTZ camera
CR-V1015P20A
CR-V1015P20A is an innovative PTZ camera equipped with a dual‑lens configuration. It features a main lens with 4K resolution, a 70° view, and up to 20× optical zoom, complemented by a 4K panoramic lens. This dual‑camera system enables both full‑area coverage and the ability to clearly capture fine details at a distance thanks to its 20× optical zoom, delivering sharp images even in long‑range shooting.
Powered by AI‑based intelligent tracking technology, the camera automatically locks onto and follows the target subject, capturing key moments without requiring manual adjustments. It easily meets the diverse shooting demands of scenarios such as meetings and live streaming, across various distances and angles.
INQUIRY
Powered by AI‑based intelligent tracking technology, the camera automatically locks onto and follows the target subject, capturing key moments without requiring manual adjustments. It easily meets the diverse shooting demands of scenarios such as meetings and live streaming, across various distances and angles.
Features
Specifications
Diagram
Drawing
Downloads
The CR-V1015P20A is a professional dual-lens PTZ camera designed for conference rooms, hybrid meetings, presentations, and live streaming. Its dual-camera architecture combines a 4K primary PTZ lens with a 4K panoramic camera, allowing users to maintain a wide view of the meeting space while capturing detailed images of participants or speakers from a distance.
The primary camera features a 70° field of view and up to 20× optical zoom, enabling clear close-up images for participants, presenters, and other important subjects in larger meeting spaces. The panoramic camera provides a 120° view and works as the face-detection camera, helping the system maintain awareness of people within the wider scene.
Powered by AI-based intelligent imaging functions, the CR-V1015P20A supports AI auto framing and AI voice tracking to automatically identify and follow relevant participants or speakers. Gesture control is also supported for convenient camera operation.
With 4K video resolution, multiple video output options including 3G-SDI, HDMI, USB, and IP, as well as NDI® | HX support, the CR-V1015P20A can be integrated into professional video conferencing systems and AV environments that require flexible signal transmission and camera control.
Dual-Lens Design for Full View and Close-Up Detail
A conventional PTZ camera can provide detailed close-ups, but a wider overview may require additional camera equipment. The CR-V1015P20A combines a primary PTZ camera and a panoramic camera in one system.
The panoramic camera provides a 120° wide-area view for face detection, while the primary camera uses its motorized PTZ mechanism and 20× optical zoom to capture detailed views at longer distances.
This combination allows the camera to support both wide scene awareness and detailed subject capture without requiring separate panoramic and close-up cameras.
AI Tracking and Intelligent Framing
The CR-V1015P20A is equipped with AI-based intelligent camera functions for automated subject capture.
AI auto framing helps adjust the framing according to the participants in the scene, while AI voice tracking supports speaker-focused camera movement in compatible conference environments. These functions reduce the need for continuous manual camera operation during meetings and presentations.
The camera also supports gesture control, providing an additional way to operate supported camera functions.
Features
Dual-lens camera system combining a 4K primary PTZ camera and a 4K panoramic camera.
20× optical zoom for clear close-up images at longer shooting distances.
70° field of view on the primary camera for focused participant and presenter capture.
120° panoramic camera for wide-area scene coverage and face detection.
AI auto framing for intelligent participant framing.
AI voice tracking for speaker-oriented camera tracking.
Gesture control for convenient camera operation.
4K 30FPS video output with support for multiple HD video formats.
Flexible video outputs including 3G-SDI, HDMI, USB, and IP.
NDI® | HX support for compatible professional IP video workflows.
VISCA control through RS-232, RS-485, and IP.
Up to 255 preset positions through RS-232, RS-485, and IP control.
0.1° to 100°/sec manual pan and tilt speed for flexible camera positioning.
Horizontal rotation from ±170° and vertical movement from +90° to -45°.
Suitable for professional conference room cameras, hybrid meeting systems, and live streaming applications.
4K Image Quality and Long-Range Capture
The primary camera uses a 1/2.8" 4K Sony CMOS sensor with 8-megapixel effective pixels. It supports up to 4K 30FPS video for professional meeting and presentation applications.
With 20× optical zoom, the camera is designed to preserve image detail when capturing subjects at longer distances. The specified minimum working distance is 1 m to infinity in wide-angle mode and 5 m to infinity in telephoto mode, making the camera suitable for both relatively close meeting-room setups and larger spaces.
The camera also provides a signal-to-noise ratio of ≥55 dB and a minimum illumination of 0.5 Lux under the specified F1.8 and AGC ON condition.

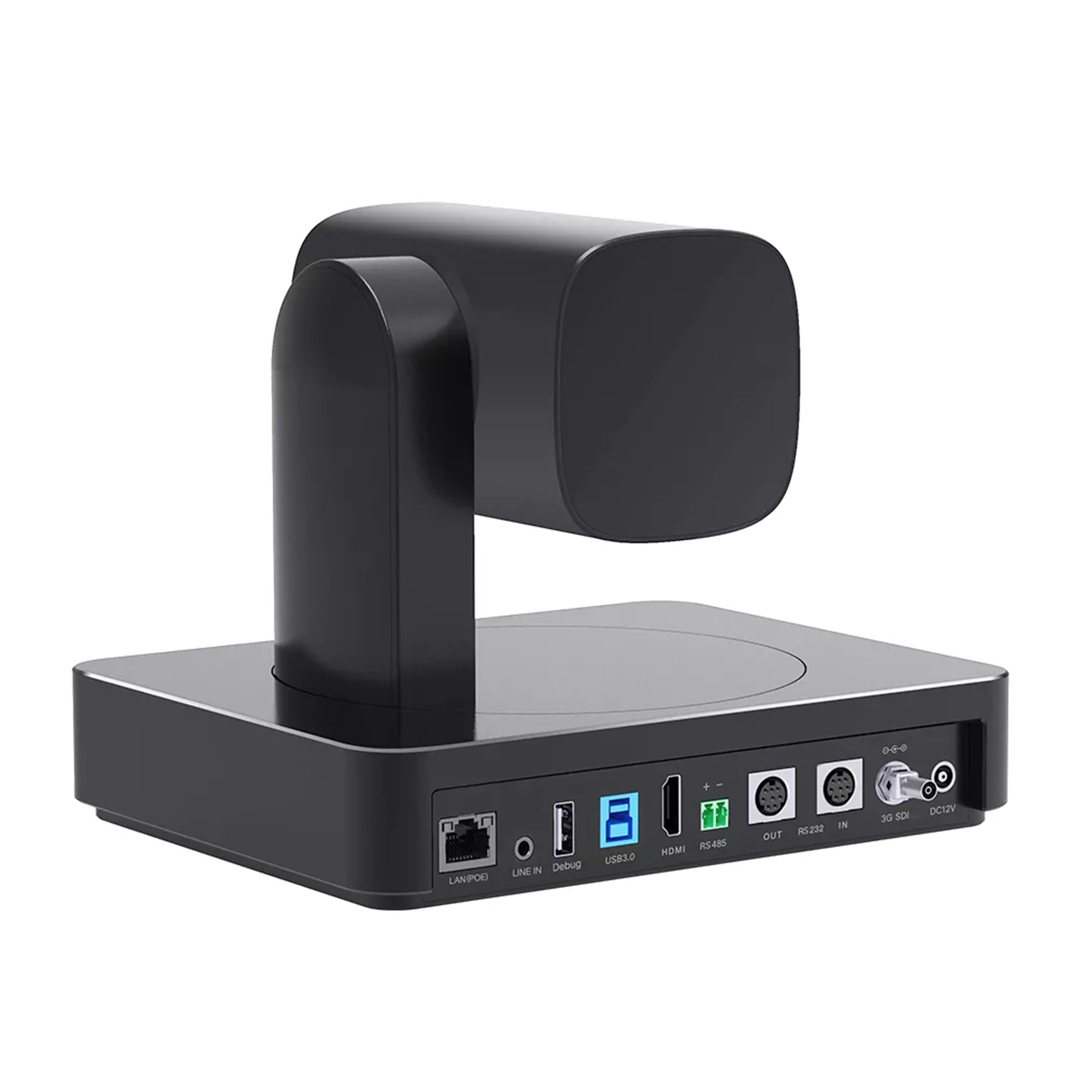

Flexible Video and Control Connectivity
The CR-V1015P20A provides multiple interfaces for integration into professional AV and video conferencing systems.
Video output is available through 3G-SDI, HDMI, USB, and IP, allowing the camera to adapt to different system architectures. The LAN interface supports 10M/100M adaptive Ethernet and IEEE 802.3af/at, while NDI® | HX is supported for compatible network video workflows.
For camera control, the CR-V1015P20A supports VISCA through RS-232, RS-485, and IP. Network protocols include IPv4, TCP, UDP, ARP, HTTP, DHCP, RTP/RTCP, RTSP, RTMP, and VISCA over IP.
| The parameter name | CR-V1015P20A |
|---|---|
| Sensor | 1/2.8" 4K Sony CMOS |
| Effective Pixels | 8 Megapixels |
| Primary Camera Vertical FOV | 67° + Motorized 15° Up/Down |
| Resolution | 4K 30FPS, 1080P 60/50/30/25/59.94/29.97FPS, 720P 60/50FPS |
| Optical Zoom | 20X |
| Field of View | 70° |
| Panoramic Camera (for face detection) |
YES (120°) |
| AI Auto Framing | YES |
| AI Voice Tracking | YES |
| Gesture Control | YES |
| Signal-to-Noise Ratio | ≥ 55 dB |
| Minimum Illumination | 0.5 Lux @ (F1.8, AGC ON) |
| Minimum Working Distance | Wide: 1m to ∞, Telephoto: 5m to ∞ |
| Horizontal/Vertical Range | Horizontal: ±170°, Vertical: +90° to -45° |
| Horizontal/Vertical Speed (Manual) |
Horizontal: 0.1° to 100°/sec, Vertical: 0.1° to 100°/sec |
| Video Encoding Formats | MJPEG, YUY2, H.264 |
| USB Protocol | UVC 1.1 |
| Video Output | 3G-SDI, HDMI, USB, IP |
| Audio Output | USB, IP, HDMI |
| Preset Positions | 10 (IR), 255 (RS-232, RS-485, IP) |
| Camera Control Interface & Protocol | VISCA (RS-232 (DIN8), RS-485 (RJ45), IP) |
| Network Protocols | IPv4, TCP, UDP, ARP, HTTP, DHCP, RTP/RTCP, RTSP, RTMP, VISCA over IP |
| Power Supply | AC 100‑240V to DC 12V/1.5A |
| Power Consumption | 12.5W |
| Power Frequency | 50 Hz, 60 Hz |
| Operating Conditions | Temperature: -20 °C to +60 °C, Humidity: 20% to 80% |
| Storage Conditions: Temperature | -30 °C to +80 °C, Humidity: 20% to 90% |
| Dimensions (W × H × D) | 200 × 160 × 160 mm |
| Net Weight | 1.4 kg |
| Interfaces | USB: YES HDMI: YES LAN: 10M/100M Adaptive Ethernet Interface, IEEE 802.3af/at PoE: N/A NDI® | HX Support: YES Other Interfaces: RS-232, RS-485, 3.5mm Line In, DC Power |
Applications
Enterprise Conference Rooms
The CR-V1015P20A can serve as a conference room camera for corporate meetings, management meetings, and remote collaboration. Its dual-lens architecture allows the system to maintain a broad view while providing detailed shots of individual participants.
Executive Boardrooms
For executive boardrooms, the camera's 4K image quality, PTZ movement, and 20× optical zoom support both full-room views and close-up presentation shots from longer distances.
Hybrid Meeting Spaces
The camera can be integrated with microphones, conference controllers, displays, and other AV equipment to form an integrated video conferencing system for communication between local and remote participants.
Training and Presentation Rooms
AI auto framing and voice tracking can help capture presenters and active participants during training sessions, internal presentations, and other professional speaking environments.
Live Streaming and Event Capture
With 4K video support and 3G-SDI, HDMI, USB, and IP outputs, the CR-V1015P20A can also be used in live streaming and professional AV production environments where flexible video connectivity is required.

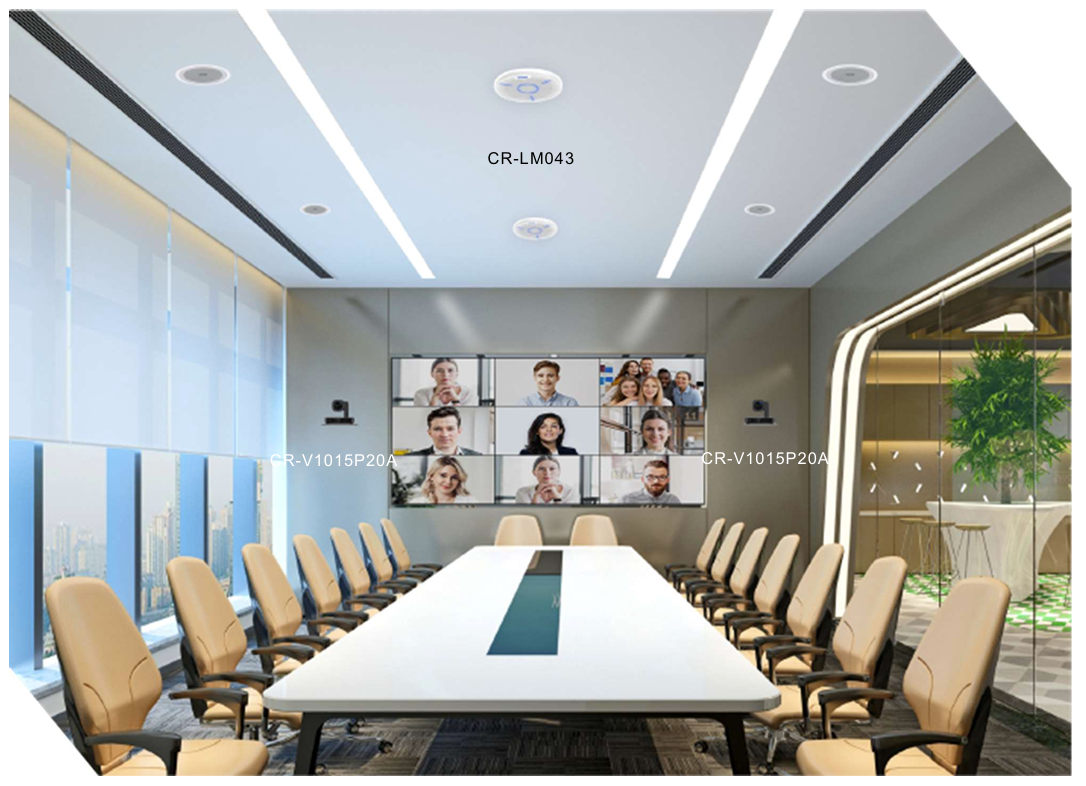

System Integration
The CR-V1015P20A is part of CREATOR's AI Enterprise Video Conference System and can be configured with other conference products according to room requirements.
For example, the camera can work with:
CR-LM043 Ceiling-Mount Array Microphone
For ceiling-based speech pickup and AI audio processing in conference rooms.
CR-VB01C All-in-one Android Conference Controller
For conference control and integration within an AI video conferencing environment.
A combined camera, microphone, and conference controller configuration can provide an integrated AV solution for enterprise meeting rooms and hybrid collaboration spaces.
Why Choose a Dual-Lens PTZ Camera for Conference Rooms?
A dual-lens architecture provides a practical combination of wide-area awareness and close-up detail.
For conference applications, the panoramic lens can maintain a wider view of the participants while the PTZ lens focuses on a selected speaker or presenter. This can reduce the need to switch between separate panoramic and close-up cameras for different meeting views.
The CR-V1015P20A further combines this architecture with AI voice tracking, AI auto framing, 4K video, and 20× optical zoom, making it suitable for meeting spaces that require both broad coverage and detailed participant capture.
FAQ
What is a dual-lens PTZ camera?
A dual-lens PTZ camera combines two imaging lenses in one camera system. The panoramic lens provides a wider view of the scene, while the PTZ lens can move and zoom to capture detailed images of selected subjects.
What is the advantage of the CR-V1015P20A's dual-lens design?
The CR-V1015P20A combines a primary PTZ camera with a panoramic camera. The panoramic camera provides a 120° view for face detection, while the primary camera provides 20× optical zoom and PTZ movement for detailed subject capture.
Does the camera support AI tracking?
Yes. The CR-V1015P20A supports AI auto framing and AI voice tracking. These functions are designed to assist with automatic participant and speaker capture in compatible conference environments.
Can the CR-V1015P20A be integrated into a conference system?
Yes. The camera is part of CREATOR's AI Enterprise Video Conference System and can be integrated with products such as the CR-VB01C conference controller and CR-LM043 ceiling-mount array microphone.
