CR-uSF02-T

4K HDMI Extender

CR-uSF02-T

CR-uSF02-T can extend HDMI signal up to 33000 feet/10 km (over
single-mode fiber cable). It supports video resolution up to 4K2K@60Hz 4:4:4. Transmitter supports loop output, audio embedding and EDID management function. Receiver supports audio extracting function. In addition, the extendersupports bidirectional IR control and RS-232 signal pass-through. It can allow you to easily control the display device on the signal source side or control the signal source device on the display side when using this extender.

CR-uSF02-T offers ideal solutions for homes, offices, digital entertainment centers, control centers, conference rooms, schools and corporate training environments, where require HDMI source and transmission over long distance.

INQUIRY

Features

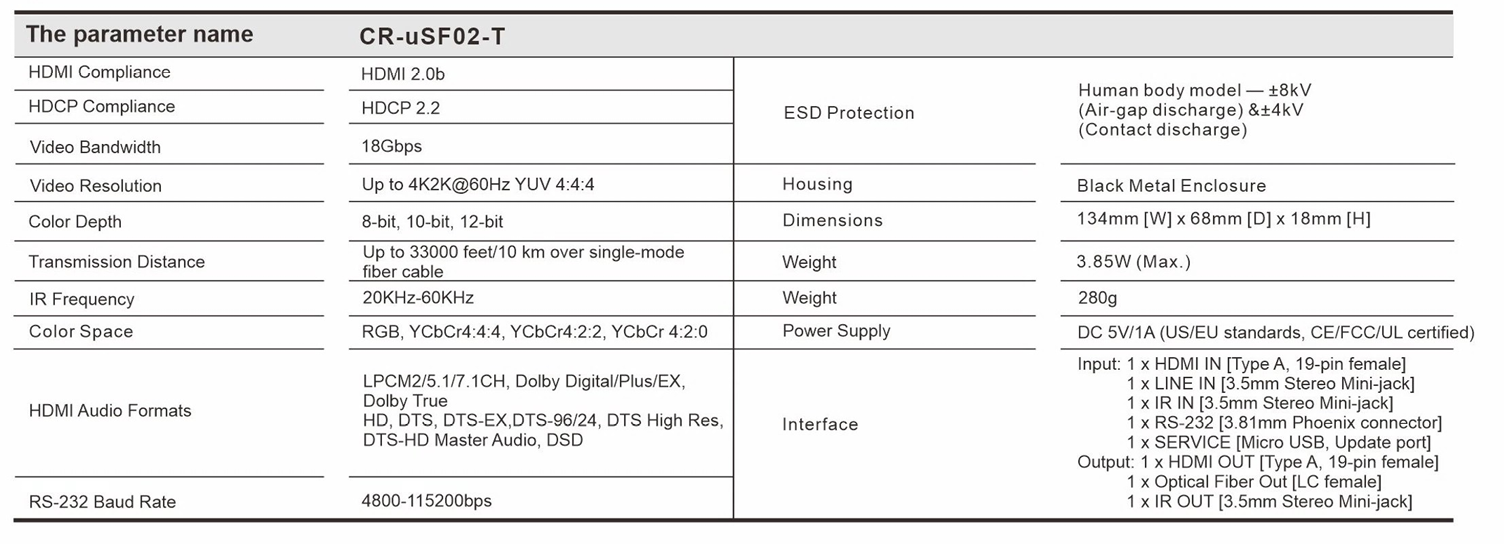

Specifications

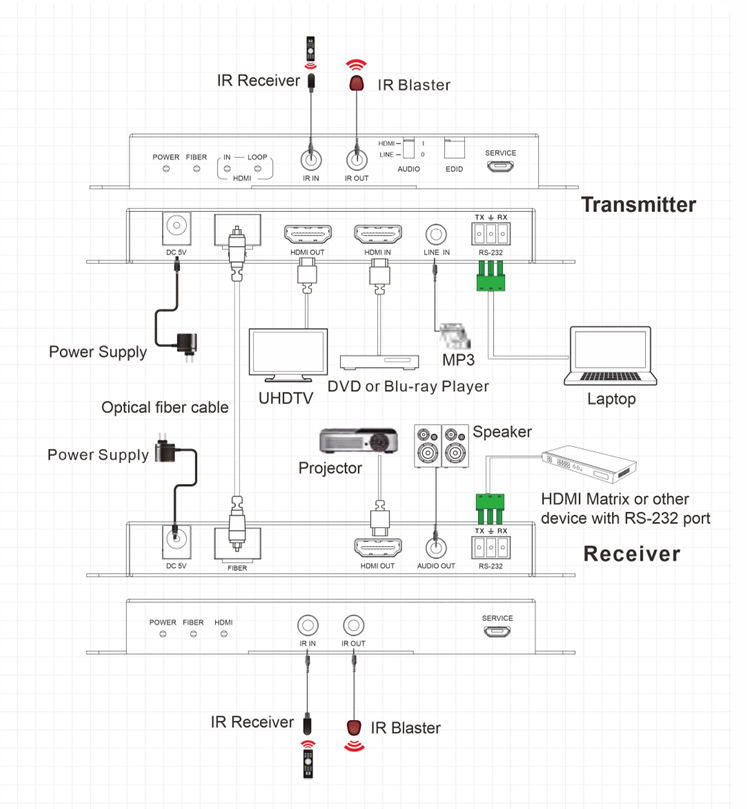

Diagram

Drawing

Downloads

● HDMI 2.0b, HDCP 2.2 and DVI 1.0 compliant
● Support 18Gbps video bandwidth
● Video resolution up to 4K2K@50/60Hz 4:4:4
● HDMI audio formats: LPCM2/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
● Support 3D and HDR format video, does not support CEC control
● Transmission distance up to 33000 feet/10 km (over single-mode fiber Cable)
*It is possible to use multi-mode fiber with these SFP modules but the
distance can not be guaranteed.
● Support bidirectional IR control, RS-232 pass-through and EDID
management for simple and convenient control
● Transmitter supports loop output (sharing local HD video and audio)
and audio embedding function
● Receiver supports audio extracting output function
● Compact design for easy and flexible installation
