4K HDBaseT Extender

CR-uCAT5 HDMI 4K-R

CR-uCAT5 HDMI 4K-R HDMI 4K 18Gbps HDBaseT Extender is a perfect solution which can extend HDMI signal and bi-directional IR signal to a distance up to 230ft/70m (4K) or 328ft/100m (1080P) over a single CAT6 cable. It is designed to convert HDMI signal to standard HDBaseT signal transmitted by LAN cable. The video resolution is up to 4K2K@50/60Hz 4:4:4. The extender supports bidirectional IR signal control, allowing to control the source device or display device conveniently at the remote end. It also supports PoC function.

CR-uCAT5 HDMI 4K-R offers ideal solutions for homes, offices, digital entertainment centers, control centers, conference rooms, schools and corporate training environments, where require HDMI source and transmission over long distance.

INQUIRY

Features

Specifications

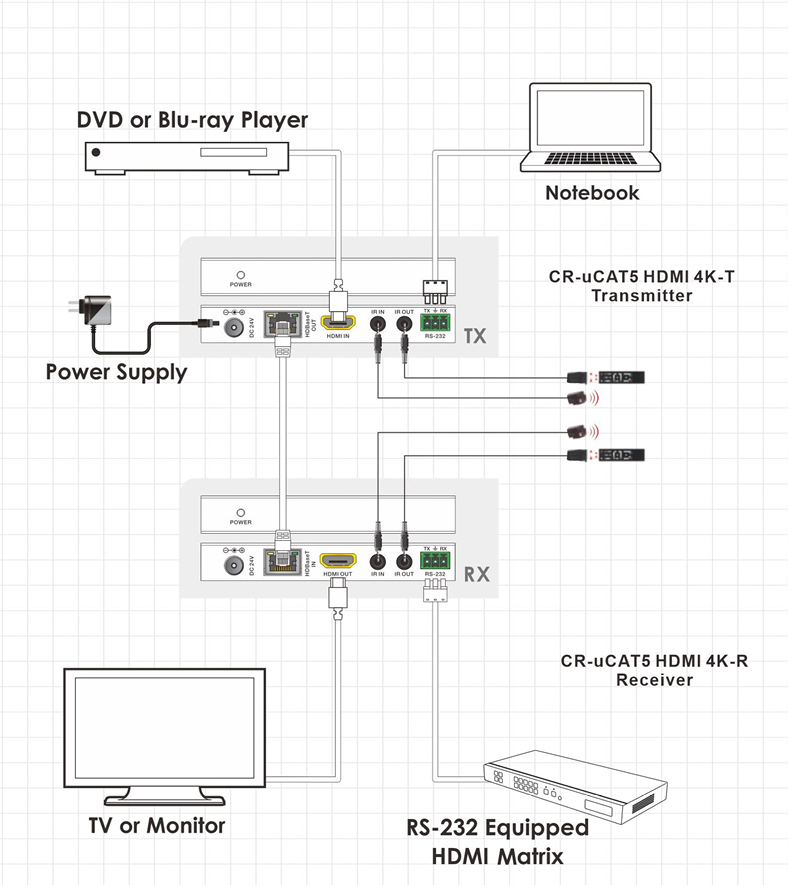

Diagram

Drawing

Downloads

HDMI 2.0b (18Gbps), HDCP 2.2 and DVI compliant
Video resolutions up to 4K2K@50/60Hz (YUV 4:4:4)
Extend HDMI signal up to a distance of 230ft/70m (4K) or 328ft/100m (1080P) over a single CAT6 cable
10bits HDR (High Dynamic Range) pass-through
Supports HDMI HBR (High Bit Rate) audio pass-through
Supports CEC bypass
HDMI audio formats support LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
PoC (Power over Cable) function is supported. Either TX or RX is powered by 24V@1A power supply, and the another does not need power supply from the DC jack. PoC power consumption is less than 10W
Transmit bidirectional IR control signal together with the HDMI signal
Transmit bidirectional RS-232 control signal together with the HDMI signal

The parameter name	CR-uCAT5 HDMI 4K-R
HDMI Compliance	HDMI 2.0b
HDCP Compliance	HDCP 2.2 and HDCP 1.4
Video Bandwidth	18Gbps
Temperature	Operating: 32 - 104°F / 0 - 40°C Storage: -4 - 140°F / -20 - 60°C
Relative Humidity	20 - 90% RH (no condensation)
ESD Protection	Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
Video Resolutions	Up to 4K2K@50/60Hz (YUV 4:4:4), 4K2K@30Hz, 1080P@120Hz and 3D1080P@60Hz
Color Depth and Space	10bit, 12bit, RGB, YCbCr_4:4:4, YCbCr_4:2:2
Transmission Distance	230ft/70m--4K, 328ft/100m--1080P
Interface	Input: 1 × HDBaseT IN [RJ45] Output: 1 × HDMI OUT [Type A, 19-pin female] Control: 1 × IR IN [3.5mm Stereo Mini-jack] 1 × IR OUT [3.5mm Stereo Mini-jack] 1 × RS-232 [3pin-3.81mm Phoenix Connector]
Housing	Black Metal Enclosure
Dimensions	115mm (W) × 65mm (D) × 17mm (H)
Power Consumption	24W (Max)
HDMI Audio Formats	LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
Power Supply	Input: AC 100 - 240V 50/60Hz, Output: DC 24V/1A (US/EU standards, CE/FCC/UL certified)
Weight	405g
