EMAX-PJOUT HDMI4

HDMI video wall card

EMAX-PJOUT HDMI4

HDMI video wall card

INQUIRY

Features

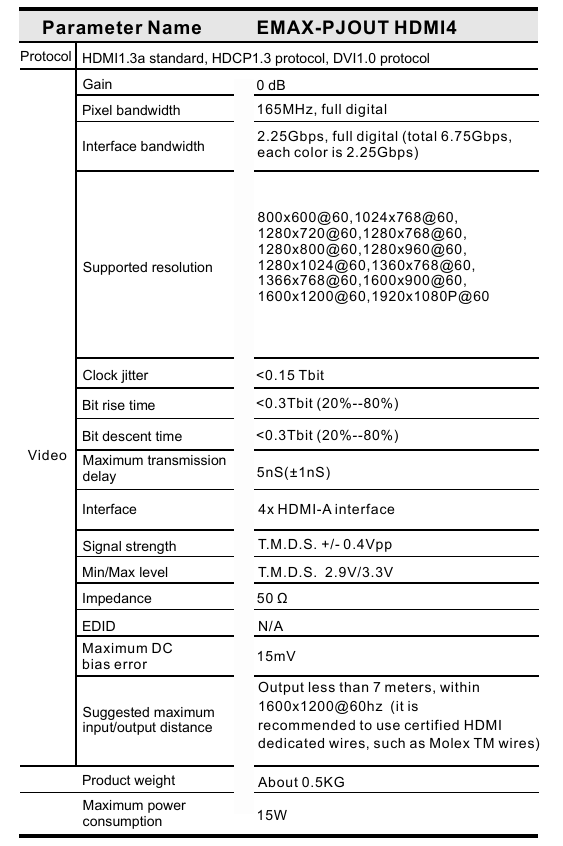

Specifications

Diagram

Drawing

Downloads

● Equipped with one card 4 HDMI output interface;
● With splicing function;
● Output up to a maximum distance of 7M;
● Support hot swapping of board cards;
● Supports LED irregular non-standard resolution splicing output, with a maximum resolution of 1920* 1080@60 for single screen output, backward compatible with all resolutions;
● Single screen windowable 4-layer 1920* 1080@60 It supports splicing functions such as large screen signal stacking, roaming, zooming, stretching, switching, and multi screen segmentation.
