Power Controller
CR-POWER4
CR-POWER4 power controller communicates with the programmable host or PC to realize the control of various peripheral devices. For example, it is used to control the power supply of peripherals such as lights, electric screens, electric curtains and projectors.
INQUIRY
Features
Specifications

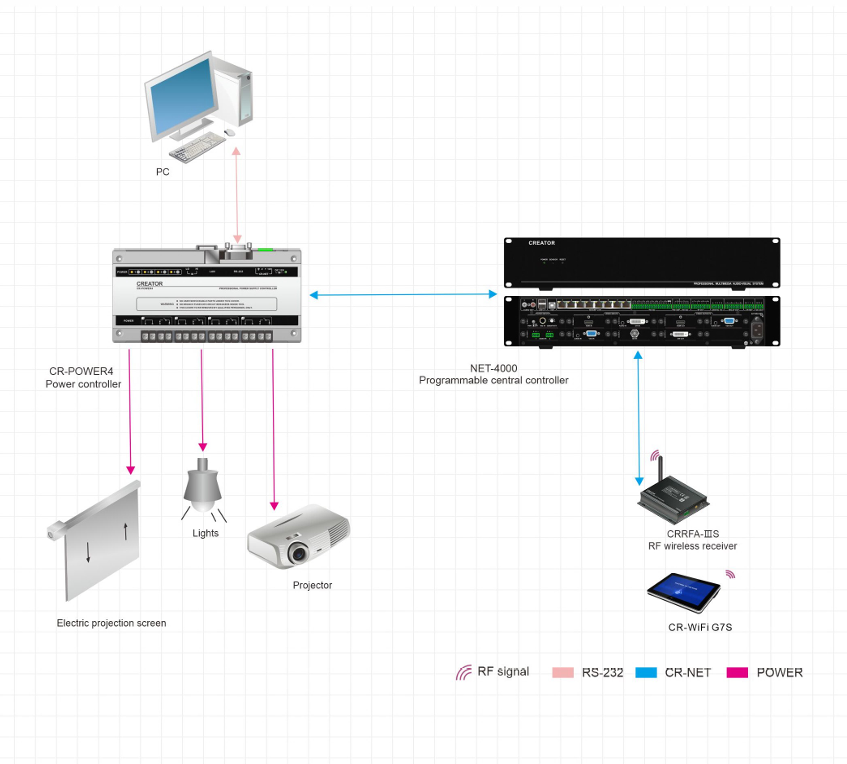

Diagram

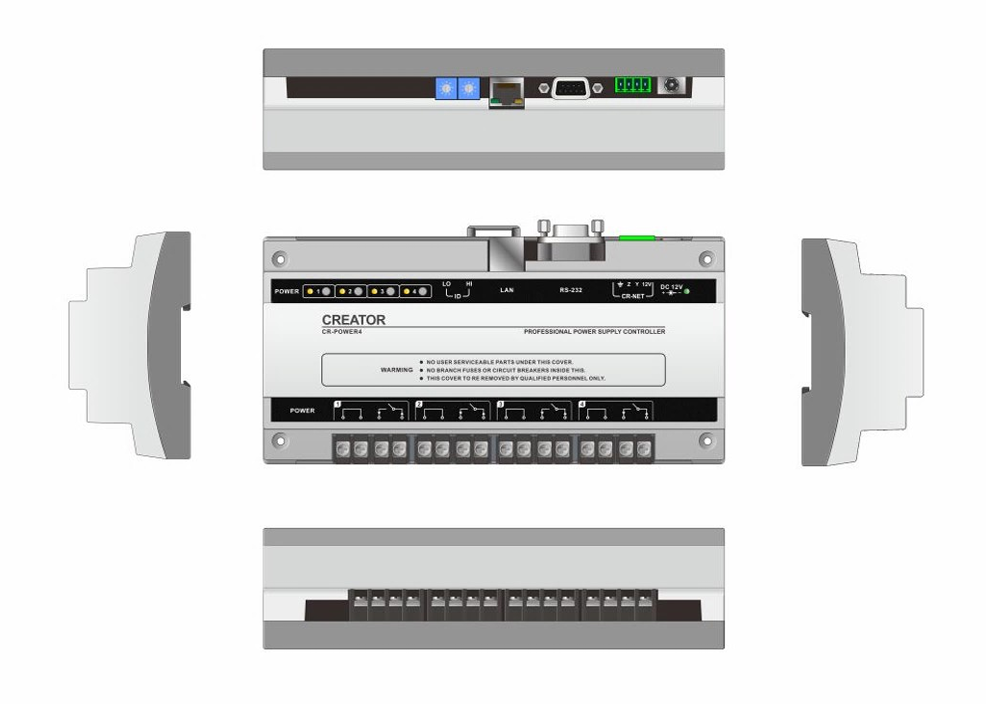

Drawing
Downloads
● CR-NET, serial port, front panel and network control.
● Provides 1 RS-232 interface, can control by independent PC machine, can realize simultaneous communication control.
● Safe sequenced power on/off operations via the push of a button, providing the highest level of surge & spike protection available.
● Embedded Web Server Control — Schedules outlet activity, event response, and sets status of each channel separately.
● Eight Total Outlets - The CR-SSPC8 contains eight IEC C13 standard outlets, suitable for general cabinet power supply.
● User friendly - Can be controlled by the third control system(through the RS-232, network, CR-NET) and the front panel.
● Voltage Protection - Extreme Voltage Shutdown (EVS) circuity safely powers down itself and connected equipment during unsafe voltage periods.
● Designed for Commercial A/V Installations in 110V-240V regions.
● The front control button is normally locked to prevent misoperation.
● 15 Amp Output Current - 15 amp maximum current capacity with incorporated 15 amp thermal circuit breaker.
| The parameter name | CR-POWER4 |
|---|---|
| Way to control | RS-232, RS-485, TCP/IP, front panel key control |
| ID selection | Rotate the ID knob to toggle setting the CR-NET ID code |
| Single channel maximum power | 1100W |
| Loading capacity | AC/~250V/5A; DC/30V/5A |
| Power supply | Provided by CR-NET control bus or DC12V power supply |
| Standby power consumption | 0.6W |
| Working power consumption | 3.6W |
| Weight | About 0.5KG |
| Dimensions (mm) | 215(L)x 106(W)x 56(H) |
