High performance network programmable controller
CR-PGMIV
CR-PGMIV is a network communication controller as a result of CREATOR’s independent research and development. It uses a quad-core 64-bit embedded processor with a main frequency of up to 2.0GHz, 2G RAM and 16G Flash memory.
INQUIRY
Features
Specifications

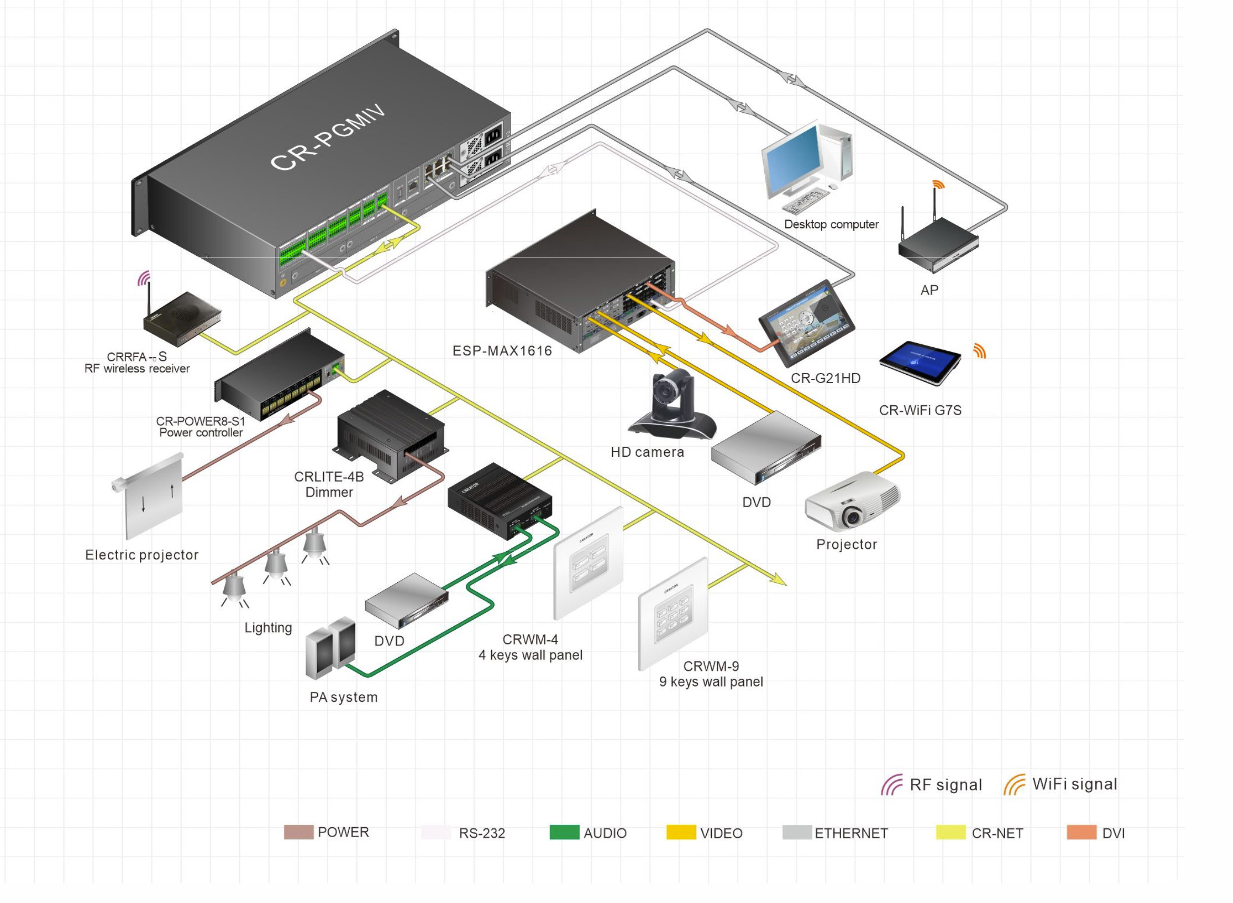

Diagram

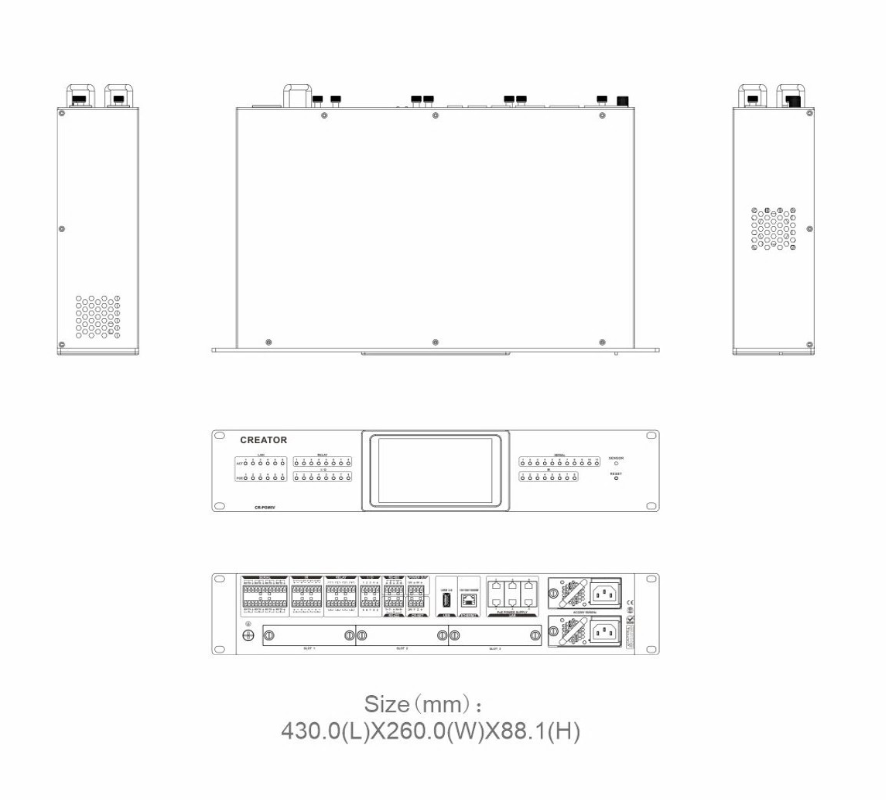

Drawing
Downloads
● System performance: 64-bit embedded system, quad-core CPU, 2.0GHz main frequency, 2GB RAM, 16GB Flash memory;
● Programmable control interfaces: 8-channel RS-232 communication interfaces, baud rate and communication protocol can be set; 8-channel infrared programmable control interfaces, built-in infrared learner; 8-channel digital input/output IO interfaces; 8-channel relay control interfaces; 2-channel RS485 interfaces, 1-channel RS422 interfaces and 1-channel CR-NET interfaces; The control interfaces support the POST function (except the relay and CR-NET interfaces);
● Network interfaces: 7-way gigabit network interfaces with switch function, 6-way of them support POE; Support network equipment control; Support TCP, UDP and other programmable control protocols; Support the customized development of HTTPS, HTTP, MQTT, SNMP and other communication protocols;
● Dual power redundancy backup; Support hot backup of dual
central controllers;
● Other functions: DC24V, DC12V, DC5V power output interface; It has three expansion slots and supports serial port, infrared, weak relay, IO and other expansion cards.
| The parameter name | CR-PGMIV |
|---|---|
| Memory | 2G RAM, 16G flash memory |
| Indicator light | 6 switch indicators, 6 POE power supply indicators, 8 relay indicators, 8 I/O indicators, 11 serial port indicators, 8 infrared indicators |
| Display | 5.5 inch LCD front panel touch screen |
| Network interface | 7 Gigabit RJ45 interfaces, 6 of them support POE |
| USB interface | 1 (USB 3.0) |
| Serial interface | 8*RS-232, 2*RS-485, 1*RS-422 |
| IR control interface | 8 |
| Digital I/O interface | 8 |
| Weak current relay interface | 8 |
| CR-NET | 1 |
| Extension socket | 3 |
| Power output interface | 1*DC24V, 1*DC12V, 1*DC5V |
| Weight | About 4.5KG |
| Power supply | Adaptive AC100-240V, Dual-power redundant backup |
