MID-MAX series hybrid matrix switchers
CR-MID MAX0808/1616/3636/8080/140140
MID-MAX series modular multi-format mixed seamless switching matrix is a high performance video signal switching equipment. It supports up to 8~140 inputs, 8~140 outputs with many kinds of daughter cards. This product supports multiple video formats input and output. And it supports video wall as well.
Multi-format matrix using the daughter cards structure, flexible and convenient installation. The input/output port support: HDbaseT, SDI, HDMI, VGA, DVI-U(HDMI/DVI/VGA/YPbPr/CVBS).With the Ethernet/LAN and RS232 communication interface, through the PC software to control the matrix signal switching, monitoring the working status of the matrix, set the signal resolution, etc.
This can provide one-stop solution for mulitiple types of visual signals and control signals switching and processing in various industries, especially for Broadcasting and Television Projects, Multimedia Meeting Rooms, Big Display Projects, TV Education, Smart Traffic Management Centers, and Command Center, etc.
INQUIRY
Multi-format matrix using the daughter cards structure, flexible and convenient installation. The input/output port support: HDbaseT, SDI, HDMI, VGA, DVI-U(HDMI/DVI/VGA/YPbPr/CVBS).With the Ethernet/LAN and RS232 communication interface, through the PC software to control the matrix signal switching, monitoring the working status of the matrix, set the signal resolution, etc.
This can provide one-stop solution for mulitiple types of visual signals and control signals switching and processing in various industries, especially for Broadcasting and Television Projects, Multimedia Meeting Rooms, Big Display Projects, TV Education, Smart Traffic Management Centers, and Command Center, etc.
Features
Specifications

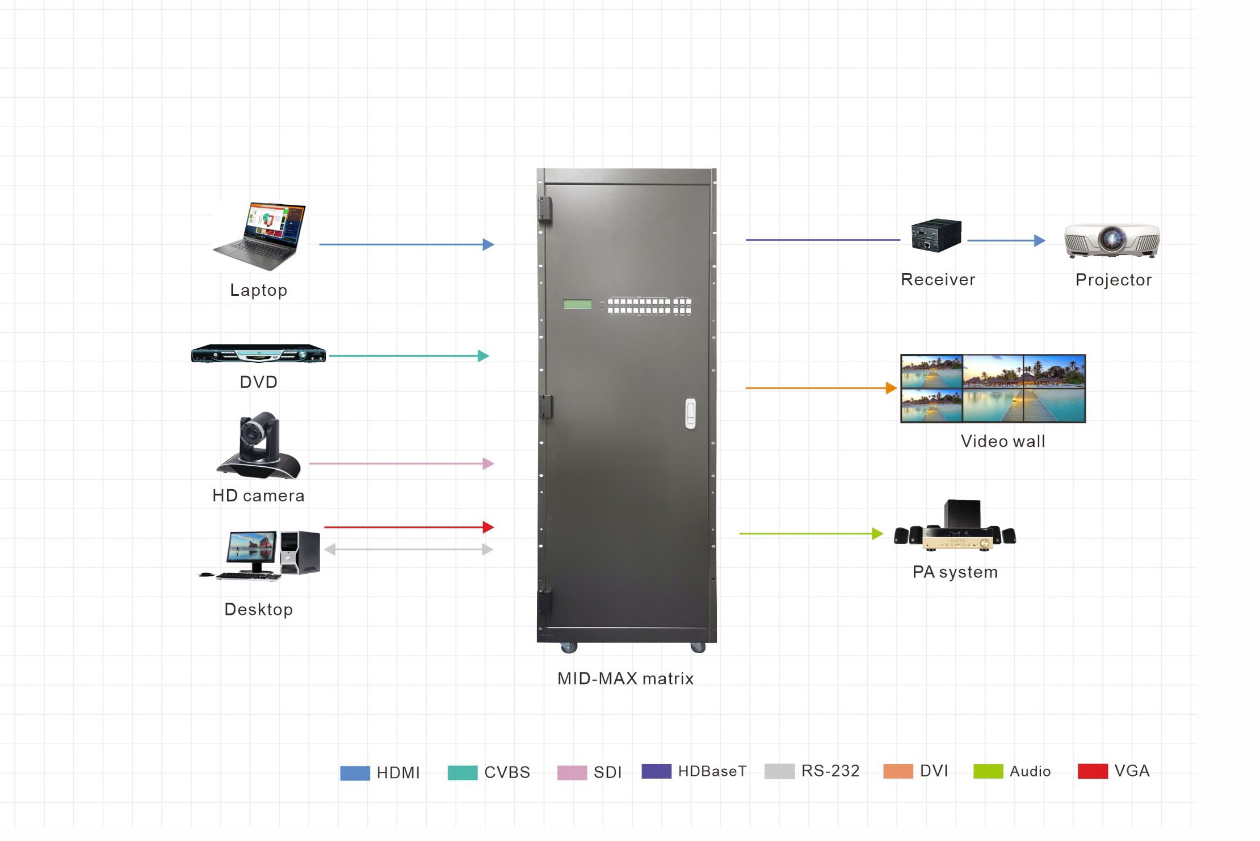

Diagram
Drawing
Downloads
● Maximum resolution of 1920 x 1080@60Hz (2K cards); 3840x2160@60Hz(4K cards);
● Support HDMI 2.0, HDCP 2.2, YUV 4:4:4, audio 7.1 CH;
● Support video wall;
● HDBaseT cards support POC;
● Full digital switching: real seamless switching for all types of output cards.
● Redundant power supply(CR-MID MAX0808/1616 is with single module, and double modules optional. CR-MID MAX3636 and above are with double power modules);
● Support Seamless switching;
● Support up to 8~140 inputs and 8~140 outputs;
● Input/Output port: HDbaseT, 3G-SDI, HDMI, DVI-U(HDMI/DVI/VGA/YPbPr/CVBS);
● Control interface: RS232,Web-based Ethernet/LAN;
● PC software to facilitate remote control, real-time display the input and output status;
● Scalar inside, output resolution control available;
● Support video wall function;
● Character overlay function: Font / color / size control available.
|
The parameter name |
CR-MID MAX0808/1616/3636/8080/140140 |
|||||
|---|---|---|---|---|---|---|
| Interface | The input card can be connected to Quantity / input channels | 4/8 | 8/16 | 18/36 | 40/80 | 70/140 |
| The output card can be connected to Quantity / output channels | 4/8 | 8/16 | 18/36 | 40/80 | 70/140 | |
| Support input card type | DMAX-IN HDMI2; DMAX-IN DVI2; DMAX-IN HD2; DMAX-IN VGA2; DMAX-IN SDI2; DMAX-IN HDMI2-4K; DMAX-IN HD2-4K; | |||||
| Support output card type | DMAX-OUT HDMI2-S; DMAX-OUT DVI2; DMAX-OUT HD2; DMAX-OUT VGA2; DMAX-OUT SDI2; DMAX-OUT HDMI2-4K; DMAX-OUT HD2-4K; | |||||
| Serial port control | Serial port control interface | RS-232, 9-pin female D interface and 9-pin male D interface | ||||
| The baud rate and protocol | Baud rate: 9600, Data bits: 8 Stop bit: 1, No parity | |||||
| Structure of serial control | 9-pin D female interface: 2 = TX, 3 = RX, 5 = GND | |||||
| Front panel | Control button | Physical control buttons | ||||
| Display | LCD status display | |||||
| Ethernet control | Ethernet control interface | RJ-45 bus interface | ||||
| Ethernet Control Protocol | TCP/IP | |||||
| Ethernet IP type | Static IP, Automatic IP | |||||
| Specifications | Working power supply | 100VAC ~ 240VAC, 50/60 Hz | ||||
| Storage, use temperature | -4 - 140°F / -20 - 60°C; 32 - 104°F / 0 - 40°C | |||||
| Storage, use humidity | 20 - 90% RH (no condensation) | |||||
| Box size | 2U | 4U | 8U | 16U | 29U | |
| Gross weight | 9kg | 13kg | 23kg | 44kg | 88kg | |
| No-load power consumption (redundant) | 100W | 200W | 350W*2 | 350W*4 | 500W*4 | |
| Mean time between failures | 30,000 hours | |||||
| The warranty | 1 year free warranty | |||||
| The parameter name | MID-MAX 2K seamless cards | |
|---|---|---|
| Input | Signal | Format |
| HDMI | HDMI 1.3A, Up to 1080P60 | |
| HDBaseT | Up to 1080P60 | |
| DVI / VGA | Up to 1080P60 | |
| SDI | 480i60, 576i50, 1080i60, 1080i50, 720p60, 720p50, 1080p24/25/30/50/60 | |
| Output | Signal | Format |
| HDMI | HDMI 1.3A, Up to 1080P60 | |
| HDBaseT | Up to 1080P60 | |
| DVI / VGA | Up to 1080P60 | |
| SDI | 480i60, 576i50, 1080i60, 1080i50, 720p60, 720p50, 1080p24/25/30/50/60 | |
| The parameter name | MID-MAX 4K seamless cards | |
|---|---|---|
| Input | Signal | Format |
| HDMI | Up to HDMI 2.0 4K 4:4:4@60Hz | |
| HDBaseT | 4K@60Hz, works with HDBaseT seamless transmitter box. | |
| Output | Signal | Format |
| HDMI | Up to HDMI 2.0 4K 4:4:4@60Hz | |
| HDBaseT | 4K@60Hz, works with HDBaseT seamless receiver box. | |
