10.1" wired/wireless programmable color touch pane
CR-GH101LW
The CR-GH101LW is a 10.1-inch wired and wireless programmable touch screen designed for professional central control systems. Featuring a high-resolution IPS display, 10-point capacitive touch, Android 7.1, video signal preview, RTSP streaming preview, and bidirectional communication, it provides an intuitive human-machine interface for controlling and monitoring AV equipment.
With support for 48V PoE and DC 12V power supply, the CR-GH101LW can be deployed flexibly in meeting rooms, command centers, conference spaces, control rooms, and other professional AV environments.
INQUIRY
With support for 48V PoE and DC 12V power supply, the CR-GH101LW can be deployed flexibly in meeting rooms, command centers, conference spaces, control rooms, and other professional AV environments.
Features
Specifications
Diagram

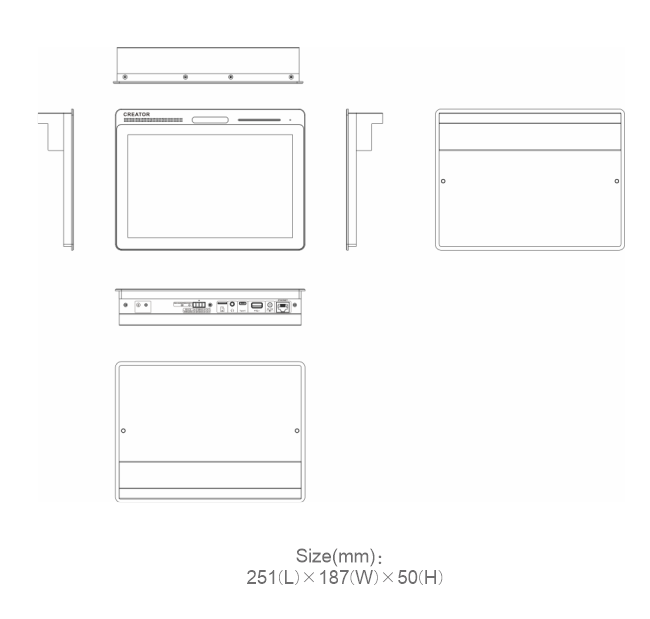

Drawing
Downloads
The CR-GH101LW is a professional programmable touch panel for CREATOR central control systems. Its 10.1-inch IPS capacitive touchscreen provides a 1920 × 1200 resolution and supports 10-point multitouch for smooth and responsive operation.
The panel enables users to preview video signals, monitor RTSP streaming sources, and control connected equipment through a customizable graphical user interface. Interface elements such as buttons, styles, and logos can be customized according to different project requirements.
The CR-GH101LW supports both wired and wireless communication with the central control host. Through bidirectional communication, users can receive real-time feedback from controlled devices while performing control operations from the touch interface.
Designed for professional AV integration, the panel combines centralized equipment control, signal preview, touchscreen interaction, and system status monitoring in one compact device.
For users searching for a programmble contol touch screen, the CR-GH101LW provides a professional programmable touch interface for centralized AV and equipment management.
Key Features
10.1-Inch IPS Capacitive Touchscreen
The CR-GH101LW features a 10.1-inch IPS capacitive display with 1920 × 1200 resolution. The 16:10 wide-screen format provides a clear and spacious interface for control functions, signal preview, and system monitoring.
10-Point Multi-Touch Control
The capacitive touchscreen supports 10-point touch operation, allowing fast and intuitive interaction with customized control interfaces.
High-Performance 6-Core Processor
The device uses a 6-core processor architecture with a 1.8GHz operating frequency, combined with 4GB RAM and 16GB ROM for responsive interface operation and application management.
Customizable Control Interface
The graphical control interface can be customized to match different project requirements. Users can configure interface styles, button styles, logos, and other visual elements to create a tailored central control experience.
Visual Signal Preview
The panel supports visual preview of video signals, allowing operators to view signal sources directly from the touch interface before or during system operation.
RTSP Streaming Preview
The CR-GH101LW supports visual preview and operation of RTSP streaming media signals, including distributed AV signals and IPC network camera sources.
Wired and Wireless Communication
The touch panel can communicate with the central control host through wired or wireless connections. Bidirectional communication allows the system to provide real-time feedback on the status of connected and controlled equipment.
PoE and DC Power Options
The device supports both 48V PoE power and a DC 12V power adapter, providing flexible deployment options for different installation environments.
USB and Type-C Connectivity
The panel provides USB 3.0 and Type-C interfaces for connecting external storage devices and other compatible peripherals.
Built-In Camera
A front-facing 13-megapixel camera supports facial recognition unlocking functions, providing an additional access and authentication option for compatible applications.
Data Backup and System Upgrade
The integrated TF card slot supports system data backup and software or system upgrade operations.

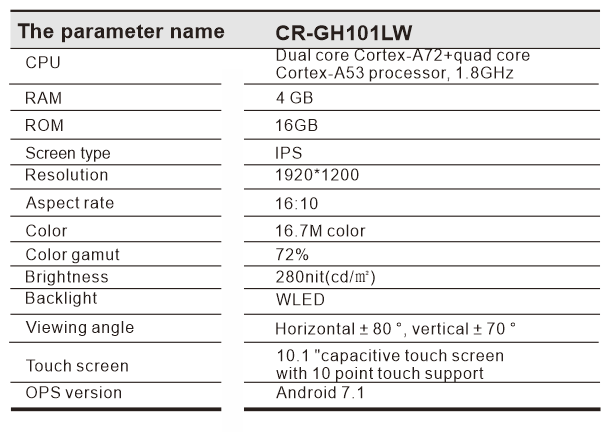

| The parameter name | CR-GH101LW |
|---|---|
| CPU | Dual core Cortex-A72+quad core Cortex-A53 processor, 1.8GHz |
| RAM | 4 GB |
| ROM | 16GB |
| Screen type | IPS |
| Resolution | 1920×1200 |
| Aspect rate | 16:10 |
| Color | 16.7M color |
| Color gamut | 72% |
| Brightness | 280nit(cd/m²) |
| Backlight | WLED |
| Viewing angle | Horizontal ±80°, vertical ±70° |
| Touch screen | 10.1" capacitive touch screen with 10 point touch support |
| OPS version | Android 7.1 |

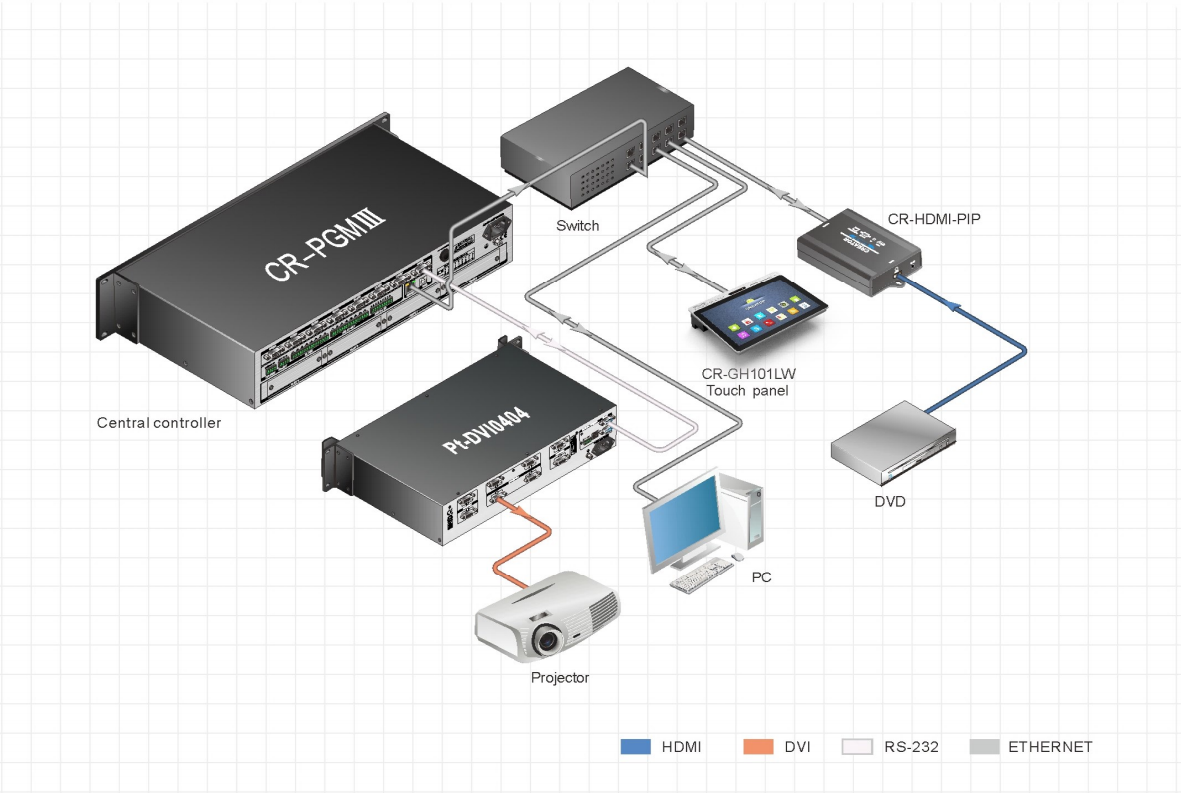

Central Control System Integration
The CR-GH101LW is designed as an interactive control terminal within a professional central control system rather than as a standalone consumer tablet.
When integrated with a CREATOR central control host, the panel can provide a visual interface for managing connected AV and control equipment. Operators can use customized touch buttons to control devices while monitoring real-time equipment status.
This architecture is particularly useful for integrated AV environments where multiple systems must be operated from one interface. The product category also includes different touchscreen sizes and installation configurations, allowing system integrators to select a suitable control terminal for specific projects.
Applications
Conference Rooms
The CR-GH101LW can be installed in conference rooms as a centralized control interface for meeting room AV equipment. Users can control displays, signal sources, audio devices, and other connected equipment through a customized touchscreen interface.
The visual preview function can also help operators monitor video sources during presentations and meetings.
Command and Control Centers
In command and control environments operators often need a centralized interface for monitoring and controlling multiple devices. The CR-GH101LW provides touchscreen access to control functions while supporting signal and RTSP stream preview.
Its wired and wireless communication options also provide flexibility when deploying multiple control terminals.
Meeting and Board Rooms
The panel can provide an intuitive control interface for boardrooms and executive meeting spaces. Customizable buttons and interface layouts can be designed around room-specific functions and user workflows.
Control Rooms
The CR-GH101LW is suitable for professional control rooms where operators need rapid access to equipment controls and real-time system feedback.
Its support for RTSP streaming also makes it suitable for environments where network cameras and distributed AV sources need to be monitored from a central interface.
Smart AV Systems
The touch panel can act as a human-machine interaction terminal in integrated smart AV systems, bringing multiple device control functions into a single graphical interface.
Advantages of a Programmable Touch Control Interface
A programmable touch interface provides greater flexibility than a conventional fixed-function control panel.
Instead of assigning a fixed physical button to every function, the control interface can be customized according to the devices and workflows used in a particular project.
For example, a conference room interface may include dedicated controls for:
- Display power
- Video source selection
- Audio volume
- Camera control
- Signal preview
- Lighting control
- System status monitoring
This makes the CR-GH101LW suitable for AV projects where the user interface needs to match different room configurations and control requirements.
Flexible Power and Connectivity
The CR-GH101LW supports both 48V PoE and DC 12V power input.
PoE deployment can simplify installation by allowing power and network communication to be delivered through a compatible Ethernet infrastructure. DC 12V power provides an alternative for installations where local power adapters are preferred.
The combination of RS232, USB 3.0, Type-C, audio output, and wireless communication provides additional flexibility for integration with professional AV and control environments.
FAQ
Is the CR-GH101LW a programmable control panel?
Yes. The CR-GH101LW is designed as a programmable touch control interface for centralized AV and equipment management. Its graphical user interface can be customized for different applications.
What screen does the CR-GH101LW use?
It uses a 10.1-inch IPS capacitive touchscreen with a 1920 × 1200 resolution, 16:10 aspect ratio, and 10-point touch support.
Can the control interface be customized?
Yes. The interface supports customization of styles, button designs, logos, and other graphical elements according to project requirements.
What operating system does the CR-GH101LW use?
The product uses Android 7.1.
Is the CR-GH101LW suitable for conference rooms?
Yes. Its programmable interface, signal preview, audio output, wired/wireless communication, and central control integration make it suitable for meeting rooms, conference rooms, boardrooms, and other professional AV environments.
