HomeDIG7 Series Full Digital Conference System
Full digital tabletop discussion unit
CR-DIG7202/04N2
The CR-DIG7202/04N2 conference unit is a desktop wired digital unit that uses CAT5e Ethernet communication. The conference unit adopts POE power supply mode, supporting open-loop connection, closed-loop connection, dual link communication connection, and host hot backup work, with high system stability. The panel adopts a physical button+LCD touch screen control method. The touch screen can display clock, voting, language selection, etc., improving the flexibility of conference use. And it is equipped with a 3.5mm headphone jack and a scroll style volume control knob.
CR-DIG7202N2 is the chairman unit, CR-DIG7204N2 is the delegate unit.
INQUIRY
CR-DIG7202N2 is the chairman unit, CR-DIG7204N2 is the delegate unit.
Features
Specifications

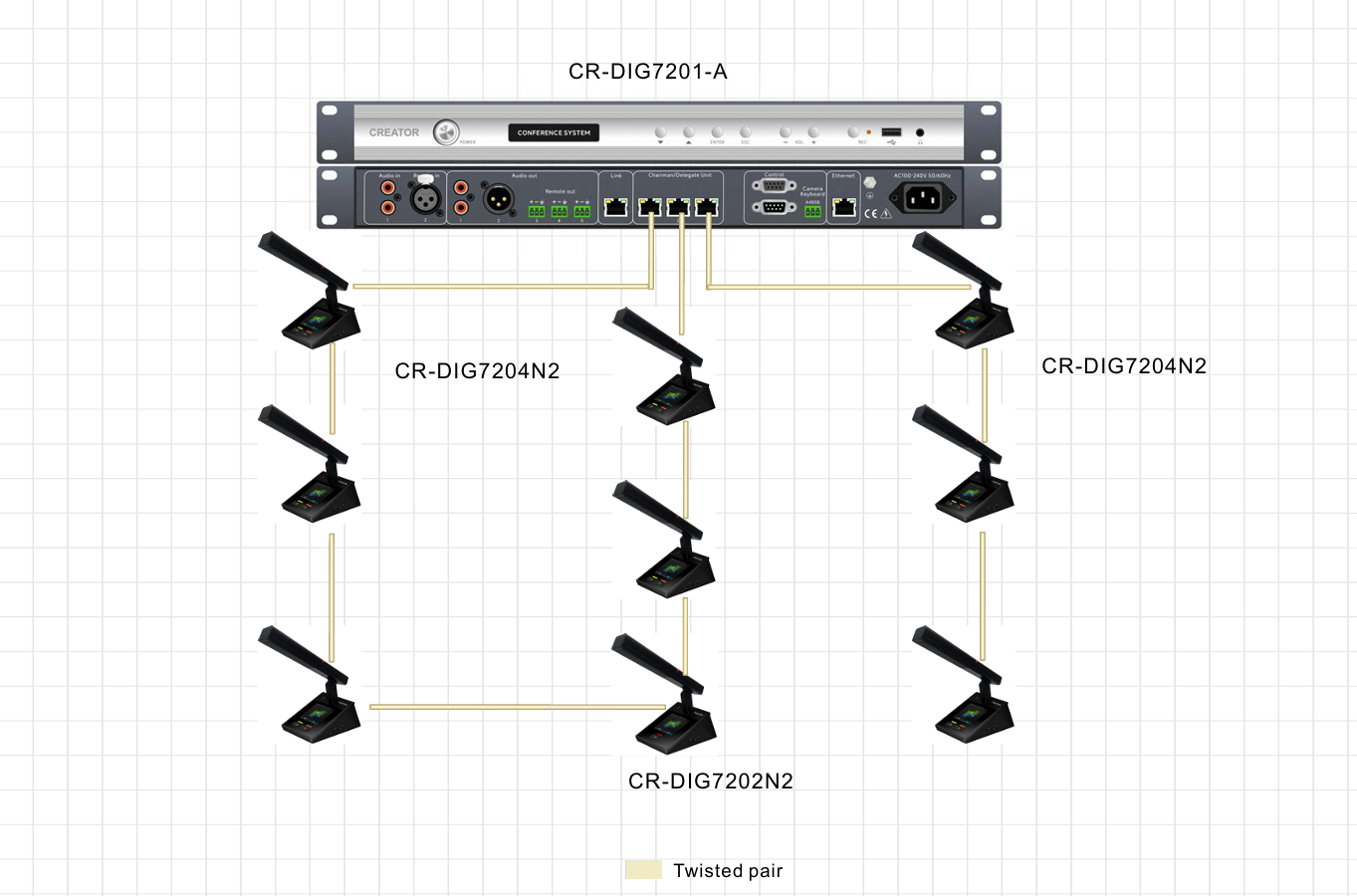

Diagram
Drawing
Downloads
The CR-DIG7202/04N2 Full digital tabletop discussion unit is a wired digital conference unit designed for professional meeting rooms, boardrooms, conference centers, government facilities, and other structured discussion environments.
Using standard CAT5e Ethernet cabling and RJ45 interfaces, the unit supports PoE power supply, open-loop and closed-loop connections, dual-link communication, and host hot backup. This architecture provides a stable and flexible connection method for professional digital conference systems.
The unit combines physical buttons with a 480 × 480 LCD touchscreen for convenient conference control. Users can access functions such as clock display, voting, language/interpretation channel selection, speech timing, and check-in directly from the tabletop unit. A 3.5 mm stereo headphone interface and rotary volume control are also provided for convenient monitoring.
The CR-DIG7202N2 functions as the chairman unit, while the CR-DIG7204N2 functions as the delegate unit, allowing both chairman and delegate positions to be configured within the same conference system.
Features
Full Digital Conference Communication
Designed as a professional digital conference unit for stable wired audio communication over standard CAT5e Ethernet cabling.
PoE Power Supply and Flexible Network Connection
The conference unit uses PoE power and supports open-loop, closed-loop, and dual-link communication connections. Host hot backup further supports system continuity in professional conference installations.
CAT5e and RJ45 Connection
Standard CAT5e cabling and dual RJ45 Ethernet ports simplify standardized installation, system expansion, troubleshooting, and maintenance.
Tabletop Design for Professional Meeting Rooms
The compact desktop structure is designed for boardrooms, meeting rooms, conference centers, government facilities, and other professional discussion environments.
LCD Touchscreen Control
The 480 × 480 touchscreen provides an intuitive interface for clock display, voting, language/interpretation channel selection, speech timing, and other conference functions.
Chairman and Delegate Unit Options
The CR-DIG7202N2 is designed as the chairman unit, while the CR-DIG7204N2 is used as the delegate unit, allowing flexible configuration for different meeting layouts.
Conference Microphone and Speech Control
The unit integrates a heart-shaped condenser pickup with microphone control buttons for clear and convenient participant speech management.
Built-in Status Indicators
Power and dual-color status indicators provide a quick visual indication of the unit's operating status.
Voting and Check-in Functions
The unit supports conference check-in and three voting modes, including affirmative/abstention/negative, 1/2/3/4/5 selection, and evaluation using --, -, 0, +, ++.
Interpretation Channel Selection
The touchscreen supports simultaneous interpretation channel selection when the unit is deployed as part of a compatible conference interpretation system.
Headphone Monitoring and Volume Control
A 3.5 mm stereo headphone jack and rotary volume control allow participants to conveniently monitor conference audio.
Flexible Cable Routing
The connection cable can be routed through the bottom or rear of the unit according to the requirements of the conference table and installation environment.
| Parameter Name | CR-DIG7202/04N2 |
|---|---|
| Button | Mechanical button |
| Pickup | Heart-shaped capacitor |
| Sensitivity | -46 dBV/Pa |
| Maximum Power Consumption | 1.6W |
| Directivity | 0°/180° > 20dB (1KHz) |
| Input Impedance | 2kΩ |
| Signal-to-Noise Ratio | ≥70dB |
| Frequency Response | 20Hz~20KHz |
| Equivalent Noise | 20dBA (SPL) |
| Maximum Sound Pressure Level | 125dB (THD < 3%) |
| Display Resolution | 480*480 |
| Connection Interface | 2X RJ-45 Ethernet port |
| Connection Method | Twisted pair connection |
| Working Temperature | -10°C ~ +55°C |
| Installation Method | Desktop |
| Housing Material/Color | Aluminum alloy/black |
| Earphone | Loading: 16Ω, Volume: 10mW, Connector: 3.5mm stereo |
| Dimensions | 130 (W) x 100 (H) x 56 (D) mm (excluding microphone) |
| Weight | 0.45kg |
Chairman and Delegate Configuration
The CR-DIG7202/04N2 series provides two unit configurations for different roles in a conference:
CR-DIG7202N2 Chairman Unit
The chairman unit is designed for the meeting chair and supports microphone control, priority functions, conference voting, check-in, and other meeting management functions available through the conference system.
CR-DIG7204N2 Delegate Unit
The delegate unit is designed for meeting participants and provides speech, voting, check-in, interpretation channel selection, and audio monitoring functions according to the configured conference system.
Using both unit types together allows integrators to configure a complete conference microphone system for structured meetings and discussion environments.
Conference System Integration
The CR-DIG7202/04N2 is designed to work as a participant unit within a complete CREATOR digital conference system.
The unit connects through standard CAT5e Ethernet cabling and RJ45 interfaces. Multiple conference units can be deployed according to the meeting room layout, while the conference controller manages system-level functions such as speech control, voting, interpretation, recording, and camera tracking.
The CREATOR DIG7 conference controller supports fully digital audio processing, PoE-powered conference units, ring-network connections, multiple speaking modes, voting, simultaneous interpretation, PC software management, and camera tracking.
This makes the CR-DIG7202/04N2 suitable for professional installations where reliable wired communication and centralized conference management are required.
Applications
Boardrooms and Corporate Meeting Rooms
The tabletop form factor provides a dedicated discussion position for participants in corporate boardrooms, executive meeting rooms, and internal conference spaces.
Government and Institutional Meetings
The chairman and delegate configuration, voting, check-in, and centralized management functions make the unit suitable for structured government and institutional meetings.
Conference Centers
CAT5e networking and flexible connection options support organized deployment across conference rooms and larger professional meeting environments.
International Conferences
The touchscreen supports interpretation channel selection when integrated with a compatible simultaneous interpretation system, making the unit suitable for multilingual conference environments.
Training and Educational Meetings
Voting, check-in, speech control, and headphone monitoring can support structured training sessions, seminars, workshops, and educational conferences.
Command and Control Environments
The unit can be integrated into professional AV environments where conference audio, participant management, camera tracking, and centralized control are required.
Why Choose a Wired Digital Conference Unit?
For permanent conference room installations, a wired conference architecture can simplify device power and communication through structured cabling.
The CR-DIG7202/04N2 uses CAT5e Ethernet cabling and RJ45 interfaces rather than relying on wireless communication between the conference units. This makes it suitable for fixed meeting rooms where standardized cabling, predictable installation, and centralized system management are important considerations.
For projects specifically requiring wireless deployment, CREATOR also offers a separate WiFi6 series of full digital wireless conference systems. The wired DIG7 and wireless WiFi6 product lines can therefore be selected according to the installation requirements of the project.
FAQ
What is the CR-DIG7202/04N2?
The CR-DIG7202/04N2 is a Full digital tabletop discussion unit for CREATOR's DIG7 Series Full Digital Conference System. It is a wired conference unit using CAT5e Ethernet communication and RJ45 interfaces.
Is the CR-DIG7202/04N2 a wireless conference microphone?
No. The CR-DIG7202/04N2 is a wired digital conference unit. It uses CAT5e Ethernet cabling and RJ45 connections for communication with the conference system.
What is the difference between CR-DIG7202N2 and CR-DIG7204N2?
CR-DIG7202N2 is the chairman unit, while CR-DIG7204N2 is the delegate unit. They can be deployed together within the same conference system for chairman and participant positions.
Can the CR-DIG7202/04N2 be used for simultaneous interpretation?
The touchscreen supports simultaneous interpretation channel selection when the unit is integrated with a compatible interpretation system.
What conference system is the CR-DIG7202/04N2 compatible with?
The CR-DIG7202/04N2 is part of the CREATOR DIG7 Series Full Digital Conference System and is designed to operate with the corresponding conference controller and system architecture.
Related Conference System Products
For a complete conference deployment, the CR-DIG7202/04N2 can be combined with related CREATOR conference system products, including the CR-DIG7201-A Full Digital Conference Controller and other DIG7 Series conference units.
A typical system can include:
Conference Controller → Tabletop Chairman Unit → Tabletop Delegate Units → Audio / Interpretation / Camera Tracking System
This modular architecture allows the conference system to be configured according to room size, participant numbers, meeting functions, and AV integration requirements.
Get a Complete Digital Conference System
Looking for a professional conference microphone system for a boardroom, conference center, government meeting room, or international conference?
The CR-DIG7202/04N2 provides a structured wired conference unit with CAT5e connectivity, PoE power, touchscreen control, voting, check-in, interpretation channel selection, and headphone monitoring.
