CR-MCP100
CR-MCP100 matrix control keyboard is mainly used together with CREATOR platinum matrix series. CR-MCP100 can realize multi-dot remote switching control operation on matrix through the RS-485 communication interface.
INQUIRY
Features
Specifications

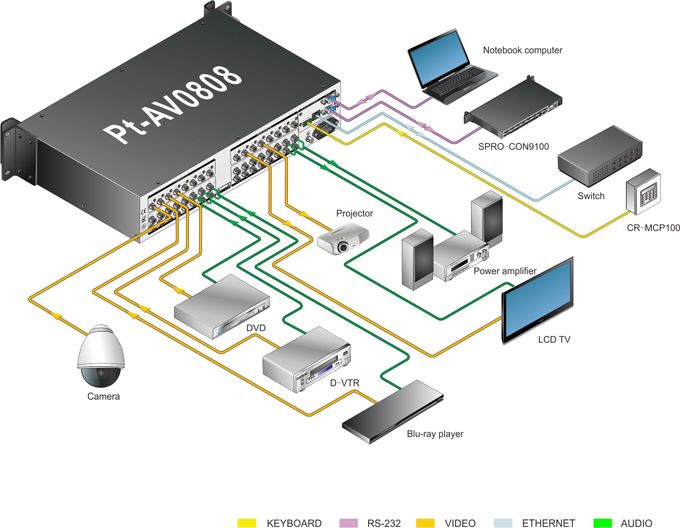

Diagram

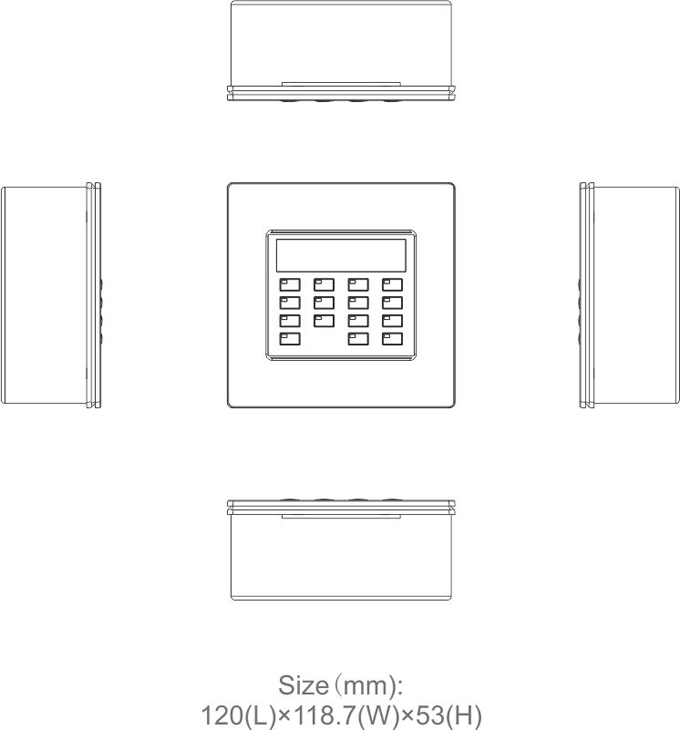

Drawing
Downloads
- With 15 key control keyboard, segment code LCD operation state display;
- Multi-dot remote switching control operation on matrix through the RS-485 communication interface;
- Stable data communication;
- Low power consumption, directly powered by the matrix keyboard interface;
- Wall-embedded design, easy installation and maintenance.
| The parameter name | CR-MCP100 | |
|---|---|---|
| MATRIX control interface | MATRIX control interface | 4 3.8mm Phoenix block |
| Using way | Be used together with CREATOR platinum matrix series | |
| MATRIX control structure | +5V=DC5V , + = DATA+, -=DATA- GND = Signal ground | |
| Means of communication | RS-485 | |
| Baud rate and protocol | Baud rate: 9600, data bits: 8, Stop bit: 1, No parity (one-way transmission of data) | |
| Proposed data transmission distance | 100m | |
| Specifications | Power supply | DC5V, provided directly by the connected matrix |
| Temperature | Storage, use temperature: -20° ~ +70°C | |
| Humidity | Storage, use humidity: 10% ~ 90% | |
| Power | ≦0.5W | |
| Weight | 0.5Kg | |
| Mean time between failures | 30000 hours | |
| Warranty | 1 year free warranty | |
